  11. Watertight Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

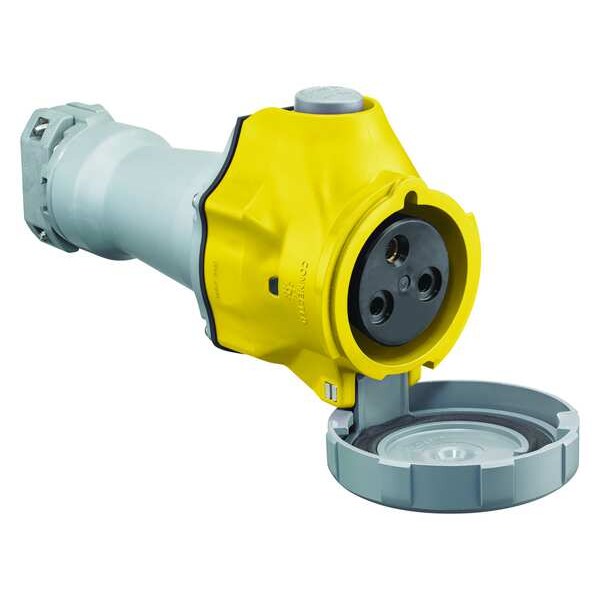

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow HBLS330C4W - main

Watertight Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

  • Mfr # HBLS330C4W

  • Zoro # G2481355

product price: $502.20
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLS330C4W
Zoro #
G2481355
UPC #
00783585550343
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.50 in
Minimum Wire Size
12 AWG
Outside Diameter
4.5 in
Overall Length
9.9 in
Maximum Wire Size
8 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
Yes
Grounding Style
IEC
Housing Color
Yellow
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material
Valox 357
Power Indication
No
Body Material - Pin and Sleeve
Valox 357
HP
2 hp
Features
Spring-Loaded Disconnect Button
Housing Material Grade
Valox 357
Power Indicating Light
Yes
Minimum Operating Temperature
-40 Degrees F
Housing Material
PBT
Horsepower Rating
2 hp
Shrouded
Yes
Compatible with Series
Advantage Switch-Rated
Market
Industrial
Reverse Service
No
For Environment
Wet
Maximum Operating Temperature
75 Degrees C
Contact Material
Beryllium Copper
Series
Advantage Switch-Rated
Style
IP69k NEMA 4X

Description

The HUBBELL AdvantageTM Series Pin and Sleeve Connector is a 30A, 125V AC device suitable for use in industrial electrical systems. This connector is switch-rated and listed as a disconnecting means for motor and branch circuits, with compatibility to IEC 60309-2 pin and sleeve devices. Its housing is made of Valox 357 PBT; rated for use in wet locations.


Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Connector:

  • Current/Voltage Rating: Rated for 30 A at 125V AC single phase

  • Horsepower Rating: Rated at 2 hp

  • Body/Housing Material: Valox 357 PBT

  • Contact Material: Beryllium copper contacts

  • NEMA/IP Ratings: NEMA Type 4X; IP68, IP69K watertight ratings

  • Operating Temperature Range: -40°C to +75°C

  • Cable Accommodation: Accepts wire sizes from 12 AWG to 8 AWG; cable diameters from 0.5 in to 1.25 in

  • Connection Orientation/Type: Straight connection with screw terminals

  • Power Indicating Light: Includes power indicating LEDs

  • Switch-Rated Functionality: Spring-loaded disconnect button included; shrouded design

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC standards (60309-1, -2); UL E146033 listed
