Shop LEGRAND

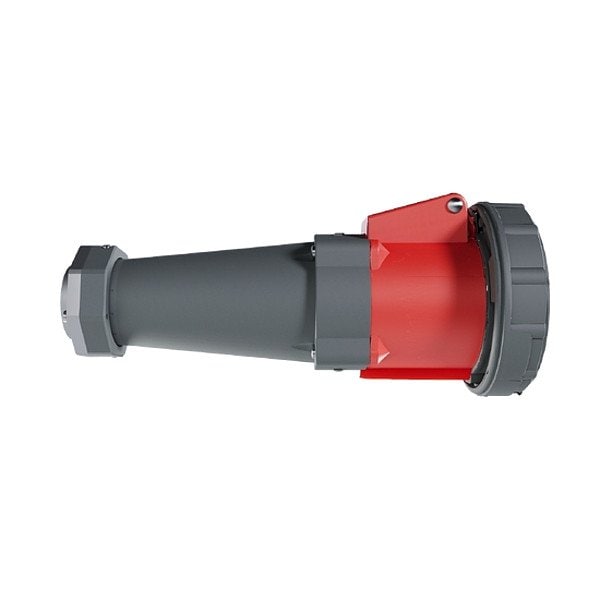

PIN & SLEEVE

  • Mfr # LE560C6WNPT7A
  • Zoro # G922784009
product price:
$
500.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Number of Wires
5
IP Rating
IP44, IP67
Wire Connection Type
Screw Terminals
Current Rating
60 A
Maximum Wire Size
4 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LE560C6WNPT7A
Zoro #
G922784009
UPC #
785007499308
Country of Origin
United States

Dimensions

Maximum Wire Size
4 AWG
Wire Rope Length
10 in
Outside Diameter
4.5 in
Minimum Wire Size
6 AWG
Overall Length
10 in
Length
10 in

Details

Number of Wires
5
IP Rating
IP44, IP67
Wire Connection Type
Screw Terminals
Current Rating
60 A
Housing Color
Gray
Reverse Service
No
Market
Industrial
Standards
IEC 309
Number of Poles
4
Minimum Operating Temperature
-50 Degrees C
UL 94 Flammability Rating
HB, V-0, V-2
Maximum Operating Temperature
80 Degrees C
Phase
Single
Series
LE
Item
Pin and Sleeve Connector
Features
3/4 in Aluminum NPT Wire Retention Design, Locking Ring with an Integral Neoprene Gasket Provides Watertight Seal When Plug and Connector/Receptacle Are Mated, Standard Clocking Positions Identified by Device Color Allow for Quick Identification and Intermate Ability
Power Indicating Light
No
Resistance Properties
Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant
Voltage Rating
200/346V AC, 240/415V AC
Housing Material
Nylon
Shrouded
Yes

Description

Pin and Sleeve Connector, Current Rating 60 A, Grounding Style IEC, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating IP44, IP67, Number of Poles 4, Number of Wires 5, Phase Single, Resistance Properties Corrosion Resistant, Moisture Resistant, UV/Sunlight Resistant, Switch Rated No, Voltage Rating 200/346V AC, 240/415V AC, Hazardous Location Specification Not Applicable, Housing Material Nylon, Market Industrial, Maximum Wire Size 4 AWG, Minimum Wire Size 6 AWG
