  6. Watertight Pin & Sleeve Connector, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

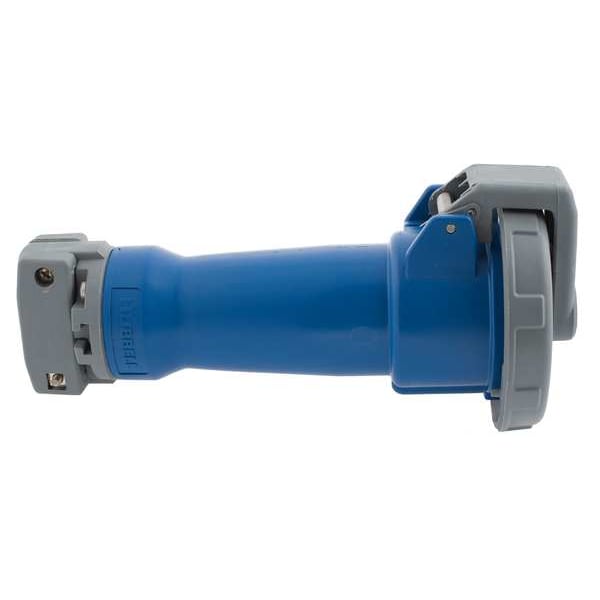

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X HBL330C6W - main

Watertight Pin & Sleeve Connector, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL330C6W

  • Zoro # G3100404

product price:  $313.20
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL330C6W
Zoro #
G3100404
UPC #
783585403519
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.375 in
Overall Length
8.24 in
Outside Diameter
3.71 in
Face Diameter
3.6 in
Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Body Material
Zytel 801 Nylon
HP
2 hp
Body Material - Pin and Sleeve
Zytel 801 Nylon
Application
High Ampacity Connections
Housing Material Grade
Zytel 801
Shrouded
Yes
Market
Industrial
Maximum Operating Temperature
75 Degrees C
Compatible with Series
HBL Heavy Duty
Housing Material
PBT
Minimum Operating Temperature
-40 Degrees F
Power Indicating Light
No
Reverse Service
No
Horsepower Rating
3 hp
Insulation
Insulated Body
Conductor Range
#12 AWG to #8 AWG
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Style
Standard Service
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Number Of Conductors
3-Wire Grounding
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 30A and 250V AC, intended for use in industrial environments. Rated for 30A and 250V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, constructed with materials that are resistant to corrosion, impact, and moisture. It supports a conductor range of #12 AWG to #8 AWG with pressure terminal screws for secure connectivity. The device meets multiple industry standards including CSA Certified LR280C and UL Classified to IEC 60309-1/2.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 30A at 250V AC single phase

  • Ingress Protection: Rated IP68/IP69K

  • Material: Insulated body with Zytel 801 nylon housing; corrosion-resistant self-closing gasketed cover

  • External cord grip designed to provide strain relief on conductors

  • Wire Connection Type: Screw terminals compatible with #12–#8 AWG wire sizes

  • Number of Poles/Wires: Two poles, three wires (3-wire grounding)

  • Operating temperature range: -40°C to +75°C

  • Color Coded Housing: Blue color coding per IEC standards allows easy voltage identification

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/2; UL E146033 listed
