  6. Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

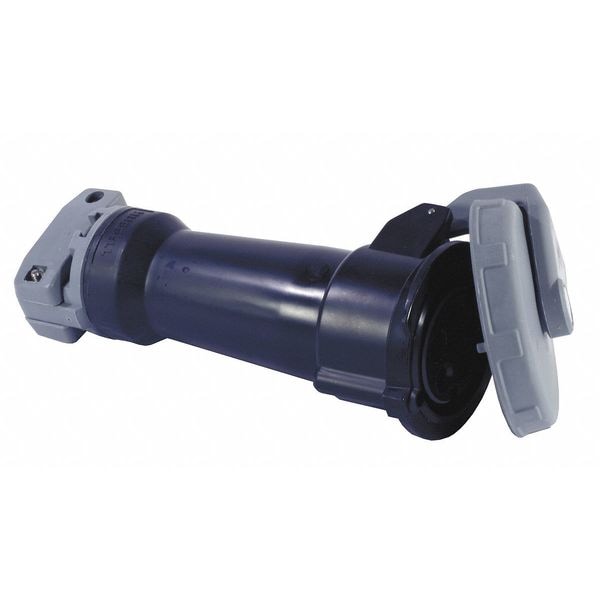

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black HBL530C5W - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL530C5W

  • Zoro # G3321459

product price:  $394.20
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL530C5W
Zoro #
G3321459
UPC #
783585405438
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.45 in
For Minimum Cable Diameter
0.50 in
Overall Length
9.33 in
Outside Diameter
4.02 in
Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Face Diameter
3.88 in
Display Size
Standard

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Black
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Features
Color Coded Housings for Easy Identification, Corrosion-Resistant Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
HP
10 hp
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Application
High Ampacity Connections
Housing Material Grade
Zytel 801
Market
Industrial
Shrouded
Yes
Housing Material
PBT
Reverse Service
No
Power Indicating Light
No
Compatible with Series
HBL Heavy Duty
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
20 hp
Maximum Operating Temperature
75 Degrees C
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Series
HBL Heavy Duty
Environmental Conditions
Watertight
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Conductor Range
#12 AWG to #8 AWG
Material - Mounting Hardware
Cord Mounted
Number Of Conductors
5-Wire Grounding
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard Service
Insulation
Insulated Body
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated as watertight per IEC 60309-1 designed for high ampacity connections in industrial settings. Rated for 30A and up to 600V AC, this connector features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, providing resistance to corrosion, impact, and moisture. It accommodates #12 AWG to #8 AWG conductors with pressure terminal screws for secure connectivity. The unit is grounded with an IEC grounding style and includes a spring-loaded cap.


Key Features of the HUBBELL IEC Pin & Sleeve Connector:

  • Current/Voltage Rating: 30A, 347/600V AC

  • Number of Poles/Wires: 4 poles / 5 wires (grounded)

  • Cable Range: Accepts cable diameters from 0.5 in to 1.45 in; conductor range #12 AWG–#8 AWG

  • Housing Material: Zytel 801 nylon body with PBT housing; insulated non-metallic construction

  • Environmental Protection: Rated IP68/IP69K per IEC 60309-1

  • Temperature Range: -40°C (without impact) to +75°C

  • Cord Mounting: External cord grip

  • Features: Color-coded housings for identification; self-closing gasketed cover; shrouded contacts

  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/-2, UL E146033
