  6. Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

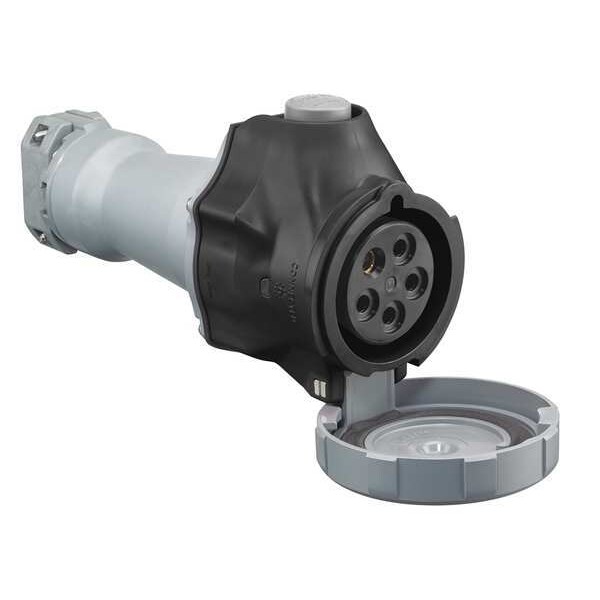

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black HBLS530C5W - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Pin & Sleeve Connector, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBLS530C5W

  • Zoro # G2481285

product price:  $622.35
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBLS530C5W
Zoro #
G2481285
UPC #
00783585550503
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
1.25 in
For Minimum Cable Diameter
0.50 in
Overall Length
9.9 in
Maximum Wire Size
8 AWG
Outside Diameter
4.5 in
Minimum Wire Size
12 AWG

Details

Item
Watertight Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
Yes
Grounding Style
IEC
Housing Color
Black
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material
Valox 357
Body Material - Pin and Sleeve
Valox 357
HP
30 hp
Power Indication
No
Features
Color Coded Housings for Easy Identification, Self-Closing Gasketed Cover, Insulated Non-Metallic Housing
Housing Material Grade
Valox 357
Reverse Service
No
Contact Material
Beryllium Copper
Shrouded
Yes
Housing Material
PBT
Compatible with Series
Advantage Switch-Rated
Power Indicating Light
Yes
Horsepower Rating
30 hp
Maximum Operating Temperature
75 Degrees C
For Environment
Wet
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Style
IP69k NEMA 4X
Series
Advantage Switch-Rated

Description

The HUBBELL AdvantageTM Series Pin and Sleeve Connector is a 30A, three-phase connector intended for use in industrial electrical systems. This device is switch-rated and compatible with IEC 60309-2 standards, functions as a disconnecting means for motor and branch circuits, per IEC 60309-2 standards. Its compact design includes a Valox 357 (PBT) housing rated for wet locations, with stainless steel hardware to withstand harsh conditions.


Key Features of the HUBBELL AdvantageTM Series Pin & Sleeve Connector:

  • Current/Voltage Rating: Rated for 30 A and 347/600V AC operation

  • Horsepower Rating: Rated up to 30 hp

  • Housing Material: Constructed from Valox 357 PBT

  • NEMA/IP Ratings: NEMA 4X enclosure; IP68/IP69K rated against dust and water ingress

  • Temperature Range: Operates between -40°C to +75°C

  • Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in; wire size range from #12 AWG to #8 AWG

  • Connection Type: Screw terminals with straight orientation

  • Power Indication: Includes power-indicating LEDs on the housing

  • Grounding Style: IEC grounding system included; shrouded contacts enhance connection security

  • Certifications: CSA Certified LR280C; UL Classified to IEC 60309-1/-2 (UL E146033)
