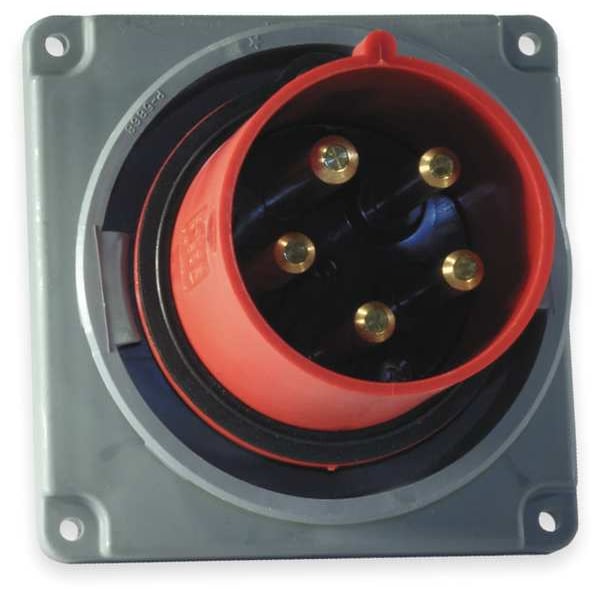

Watertight Pin & Sleeve Inlet, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red

  • Mfr # HBL5100B7W

  • Zoro # G0590581

product price:  $828.90
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5100B7W
Zoro #
G0590581
UPC #
783585405025
Country of Origin
United States

Dimensions

Flange Diameter
3.94 in
Face Diameter
3.44 in
Minimum Wire Size
3 AWG
Maximum Wire Size
1/0 AWG
Cord Size
3 to 1/0 AWG
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
100 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
HP
30 hp
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Material
Thermoplastic
Flange Type
Flanged
Horsepower Rating
40 hp
Compatible with Series
HBL Heavy Duty
Housing Material
Polybutylene Terephthalate
Switch Rated
Yes
Minimum Operating Temperature
-40 Degrees C
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
Insulation Material
Thermoplastic
Housing Material Grade
Zytel 101
Market
Industrial
Retainer Material
High-Impact Thermoset
Weight
3.35 lb
Screw Material
300 Stainless Steel
Dielectric Strength
3000V AC
Flammability
UL 94 HB or Better
Flange Material
Zytel 101 Nylon
Product Type
Watertight IEC Device
Service
Standard
Gasket Material
Neoprene
Temp. Rise
30°C
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Style
Standard Service
Material - Mounting Hardware
Screw Mounting
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Insulation
Insulated Body
Series
HBL Heavy Duty
OEM Brand Name
Hubbell Wiring Device-Kellems
Wattage
48000
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Environmental Conditions
Watertight
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Inlet is a electrical inlet rated for 100A and 277/480V AC, suitable for use in industrial settings. Rated for 100A and 277/480V AC, this device features a rugged Zytel 101 nylon body and flange, with an insulated thermoplastic housing suitable for demanding environments. It is compatible with the HBL Heavy Duty series and meets CSA Certified LR280C, UL E146032, UL IEC 60309-1, and IEC 60309-2 standards.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current/Voltage Rating: Rated for 100A at 277/480V AC (three-phase, four-pole/five-wire configuration).

  • Ingress Protection: Gasketed sealing ring achieves IP67 rating per applicable standards; rated for use in wet locations.

  • Materials: Body, flange, and housing are made from Zytel 101 nylon; retainer is constructed from thermoset material.

  • Cord Accommodation: Accepts wire sizes from #3 AWG to #1/0 AWG via screw terminal connections.

  • Temperature Range: Rated operating temperature range is -40°C to +75°C.

  • Electrical Performance: Dielectric strength of up to 3000V AC; current interrupting capability at full rated load per certification requirements; switch-rated per manufacturer specifications.

  • Grounding Style: Grounded according to IEC conventions with shrouded pins as specified by product design.

  • Ingress Protection & Resistance Properties: IP67 rating according to CSA C22.2 No.182.1 / UL1682 standards.
