  11. Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

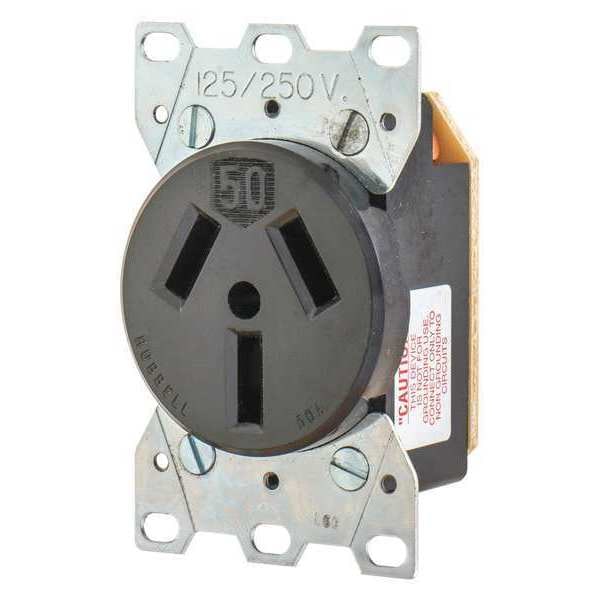

Bryant Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded 9306 - main

Straight Blade Receptacle, 10-50R, 50 A, 125/250V AC, 3 Pole, 3 Wire, Flush Mount, Non-Grounded

  • Mfr # 9306

  • Zoro # G4438607

product price: $29.19
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9306
Zoro #
G4438607
UPC #
781786632264
Country of Origin
United States

Dimensions

Minimum Wire Size
10 AWG
Maximum Wire Size
6 AWG
Display Size
Standard Sized Product
Wire Size
#10 AWG to #6 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
10-50R
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Standards
CSA Certified, UL Listed
Flange Type
Non-Flanged
Power Indicator
No
Weather Resistant - Plugs and Receptacles
No
NEMA Receptacle Configuration - Plugs and Receptacles
10-50R
Outlet Type - Plugs and Receptacles
Single
Corrosion Resistant
No
Voltage
125/250VAC
Application Environment
Industrial
Number of Gangs
1
Weather Resistant
No
Mounting Type
Flush
Material
Reinforced Thermoplastic Polymer
Outlet Type
Single
Surge Suppression
No
Tamper Resistant
No
Wiring Method - Plugs and Receptacles
Side
Mounting Type - Plugs and Receptacles
Flush
HP
3 hp
Sub-Category
Single Receptacles
Polarized
Yes
For Location
Indoor
GFCI
No
Includes
Mounting Hardware
Cover Type
No Cover
Connection Orientation
Straight
AFCI
No
Surge Protection
No
Housing Material
Thermoplastic
Horsepower Rating
3 hp
Grade
General Use
Market
Industrial
Includes Mounting Hardware
Yes
Nema Rating
10-50P
Application
Industrial Grade
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Wattage
12500
Material - Mounting Hardware
Screw Mounting
Series
Heavy Duty

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 50 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 10-50R, Number of Gangs 1, Number of Poles 3, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified, UL Listed, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Method Side, AFCI No, Horsepower Rating 3 hp
