  6. Watertight Pin & Sleeve Inlet, 100/125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red

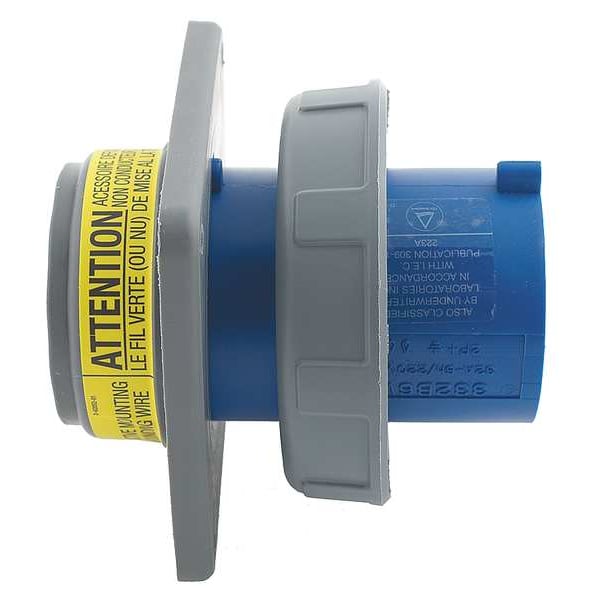

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 100/125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red HBL5100B6WP - main

Watertight Pin & Sleeve Inlet, 100/125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red

  • Mfr # HBL5100B6WP

  • Zoro # G2727137

product price:  $858.60
/ea
Free Shipping & Returns

Key Features

Current Rating
100/125 A
Voltage Rating
240/415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL5100B6WP
Zoro #
G2727137
UPC #
783585405131
Country of Origin
United States

Dimensions

Hub Diameter
3.44 in
Face Diameter
3.94 in
Maximum Wire Size
1/0 AWG
Flange Width
5.5 in
Minimum Wire Size
3 AWG
Flange Height
4.88 in
Cord Size
2 to 1/0 AWG
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
100/125 A
Voltage Rating
240/415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed/UL1682
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 101 Nylon
Grounding Style
IEC
Features
Thermoset Polyester Contact Carrier
Body Material - Pin and Sleeve
Zytel 101 Nylon
Material
Thermoplastic
Housing Material
Polybutylene Terephthalate
Insulation Material
Thermoplastic
Horsepower Rating
30 hp
Market
Industrial
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees C
Compatible with Series
HBL Heavy Duty
Maximum Operating Temperature
75 Degrees C
Housing Material Grade
Zytel 101
Service
Standard
Weight
3.5 lb
UV Resistance
All Materials are UV Stabilized
Gasket Material
Neoprene
Screw Material
300 Stainless Steel
Flange Material
Zytel 101 Nylon
Dielectric Strength
3000V AC
Retainer Material
High-Impact Thermoset
Temp. Rise
30°C
Flammability
UL 94 5VA, UL 94 V0
Product Type
Watertight IEC Device
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Switch Rated
No
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Environmental Conditions
Watertight
Insulation
Insulated Body
Style
Standard Service
Series
HBL Heavy Duty
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Number Of Conductors
5-Wire Grounding
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Rugged one-piece housing
• Thermoset polyester contact carrier
• Solid one-piece pins for reliable electrical contact
