  6. Watertight Pin & Sleeve Inlet, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red

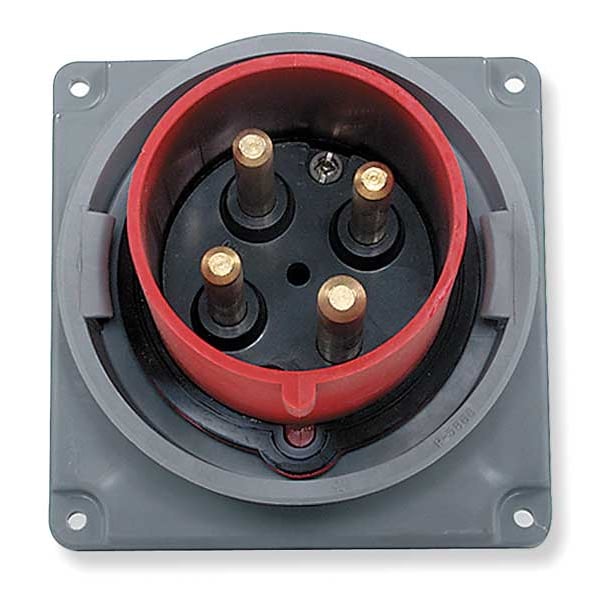

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Inlet, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red HBL420B7W - main

Watertight Pin & Sleeve Inlet, 20 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red

  • Mfr # HBL420B7W

  • Zoro # G2569131

product price:  $160.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL420B7W
Zoro #
G2569131
UPC #
783585404264
Country of Origin
United States

Dimensions

Flange Diameter
2.72 in
Face Diameter
2.11 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Cord Size
14 to 10 AWG
Wire Size
#14 AWG to #10 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
20 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed, File E146032
Resistance Properties
Moisture Resistant, Watertight
Body Material - Pin and Sleeve
Zytel 101 Nylon
Body Material
Zytel 101 Nylon
HP
5 hp
Features
Thermoset Polyester Contact Carrier
Grounding Style
IEC
Material
Thermoplastic
Housing Material Grade
Zytel 101
Shrouded
Yes
Compatible with Series
HBL Heavy Duty
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
10 hp
Housing Material
Polybutylene Terephthalate
Insulation Material
Thermoplastic
Flange Type
Flanged
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Weight
0.8 lb
Service
Standard
Product Type
Watertight IEC Device
Screw Material
300 Stainless Steel
Flange Material
Zytel 101 Nylon
Gasket Material
Neoprene
Flammability
UL 94 HB or Better
Temp. Rise
30°C
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
Operating Temp.
-40 to 75°C
Switch Rated
Yes
Application
High Ampacity Watertight Connections
Insulation
Insulated Body
OEM Brand Name
Hubbell Wiring Device-Kellems
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Wattage
9600
Material - Mounting Hardware
Screw Mounting
Style
Standard Service
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1. Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Cord Grip Retention - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Rugged one-piece housing
• Thermoset polyester contact carrier
• Solid one-piece pins for reliable electrical contact
