Shop HUBBELL WIRING DEVICE-KELLEMS

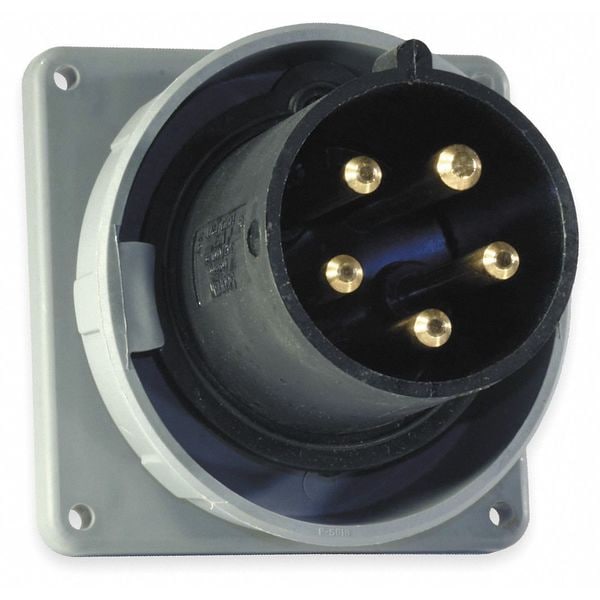

Watertight Pin & Sleeve Inlet, 60 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL560B5W
  • Zoro # G1149023
product price:
$
534.60
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL560B5W
Zoro #
G1149023
UPC #
783585405605
Country of Origin
United States

Dimensions

Flange Diameter
3.46 in
Minimum Wire Size
8 AWG
Face Diameter
2.97 in
Maximum Wire Size
2 AWG
Cord Size
8 to 2 AWG
Wire Size
#8 AWG to #2 AWG
Display Size
Standard Sized Product
Fits Chest Size
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin

Details

Item
Watertight Pin & Sleeve Inlet
Current Rating
60 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
No Cap or Cover
Standards
CSA Certified LR280C, UL E146032, UL IEC 60309-1 IEC 60309-2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
HP
15 hp
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Material
Thermoplastic
Horsepower Rating
25 hp
Compatible with Series
HBL Heavy Duty
Market
Industrial
Switch Rated
Yes
Flange Type
Flanged
Housing Material Grade
Zytel 101
Insulation Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees C
Housing Material
Polybutylene Terephthalate
Shrouded
Yes
Maximum Operating Temperature
75 Degrees C
Screw Material
300 Stainless Steel
Gasket Material
Neoprene
Product Type
Watertight IEC Device
UV Resistance
All Materials are UV Stabilized
Temp. Rise
30°C
Weight
1.9 lb
Service
Standard
Flange Material
Zytel 101 Nylon
Retainer Material
High-Impact Thermoset
Flammability
UL 94 5VA, UL 94 V0
Dielectric Strength
3000V AC
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Insulation
Insulated Body
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Wattage
36000
Style
Standard Service
Material - Mounting Hardware
Screw Mounting
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
OEM Brand Name
Hubbell Wiring Device-Kellems
Connection Type
Screw Terminals
Reverse Service
No
Number of Pins
5
Connection Orientation
Straight
Number of Gangs
1
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 60A and 347/600V AC, suitable for use in industrial environments. Rated for 60A current capacity, this device features a flanged design with screw terminal connectivity, supporting wire sizes from #8 AWG to #2 AWG. Constructed from Zytel 101 nylon and thermoplastic materials; includes features intended to address impact, moisture, and UV exposure. The unit meets IP67 ingress protection standards and is certified under CSA and UL classifications according to IEC 60309-1/2.


Key Features of the HUBBELL IEC Pin and Sleeve Inlet:

  • Current Rating: 60 A; Voltage Rating: 347/600V AC; Three-phase (3Y), four poles, five wires

  • Body Material: Zytel 101 nylon housing with insulated thermoplastic body

  • Watertight Construction: Gasketed sealing ring; IP67 ingress protection rating

  • Connectivity: Pressure terminal screws accommodate #8–#2 AWG wire sizes

  • Flange Type: Flanged mounting with neoprene gasket material

  • Temperature Range: Rated operational range is -40°C to +75°C (continuous)

  • Resistance Properties: Materials are specified as impact resistant, moisture resistant, and UV stabilized per manufacturer specifications

  • Circuit Interrupting Capability: Certified for current interrupting at full rated current; switch rated

  • Standards Compliance: CSA Certified File LR280C; UL Classified/IEC 60309-1 & -2; UL Listed File E146032
