  6. Watertight Pin & Sleeve Plug, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue

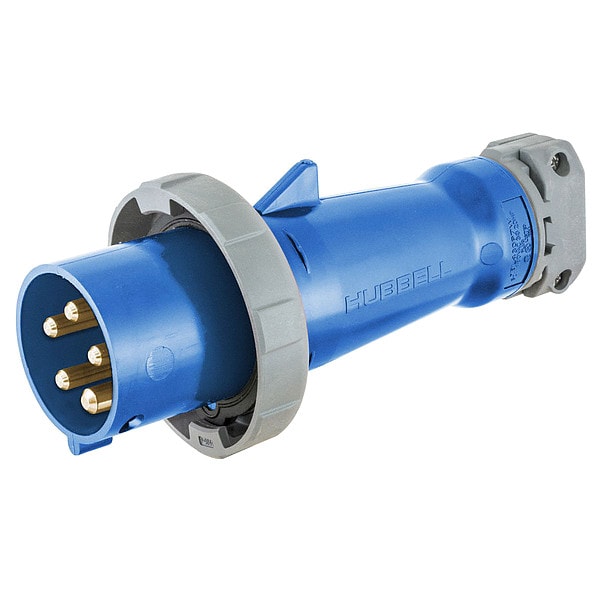

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue HBL520P9W - main

Watertight Pin & Sleeve Plug, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue

  • Mfr # HBL520P9W

  • Zoro # G0893024

product price:  $234.90
/ea
Free Shipping & Returns

Key Features

Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL520P9W
Zoro #
G0893024
UPC #
783585405353
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Overall Length
7.64 in
For Maximum Cable Diameter
0.83 in
Minimum Wire Size
14 AWG
For Minimum Cable Diameter
0.33 in
Display Size
Standard Sized
Wire Size
#14 AWG to #10 AWG

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Blue
Cap Type
No Cap or Cover
Standards
CSA Certified File LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL Standard UL1682 and UL 1686C2
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Grounding Style
IEC
Features
Gasketed Sealing Ring Provides Watertight Seal, Raised Collar Surrounds Each Phase Pin, Solid One-Piece Pins Machined from Solid Brass
HP
1/2 hp
Switch Rated
No
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
10 hp
Reverse Service
No
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Housing Material
Non-Metallic
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Material
Composite
Hub Style
Standard
Style
Standard Service
Cord Type
All Portable
Material - Mounting Hardware
Cord Mounted
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Standard UL1682 and UL 1686C2
Application
High Ampacity Connections
Series
HBL Heavy Duty
Environmental Conditions
Watertight
OEM Brand Name
Hubbell Wiring Device-Kellems
Connection Type
Screw Terminals

Description

The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector suitable for use in industrial and commercial environments requiring high ampacity connections. This 4-pole, 5-wire plug is rated for 20A at 120/208V AC three-phase power, with a non-metallic housing made from Zytel 801 nylon and composite materials. The device uses pressure terminal screws for secure wire connections and accommodates cable diameters from 0.33 to 0.83 inches.


Key Features of the HUBBELL IEC Pin and Sleeve Plug:

  • Current/Voltage Rating: Rated for 20 amps at 120/208V AC, three-phase

  • Poles/Wires: Four poles, five wires with grounded IEC style

  • Watertight Construction: Gasketed sealing ring; IP67-rated

  • Material: Constructed from Zytel 801 nylon; impact resistant

  • Cord Mounting: Compatible with various portable cord types using screw terminals

  • Temperature Range: Operates between -40°C to +75°C continuous temperature

  • Pins: Solid one-piece pins machined from solid brass with raised collar around each phase pin

  • Wire Size Compatibility: Accepts #14 AWG to #10 AWG conductors (maximum wire size of 10 AWG)

  • Standards Compliance: CSA Certified File LR280C; UL Classified to IEC 60309-1 & -2; UL1682 & UL1686C2 standards
