  6. Watertight Pin & Sleeve Plug, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow, NEMA 4X

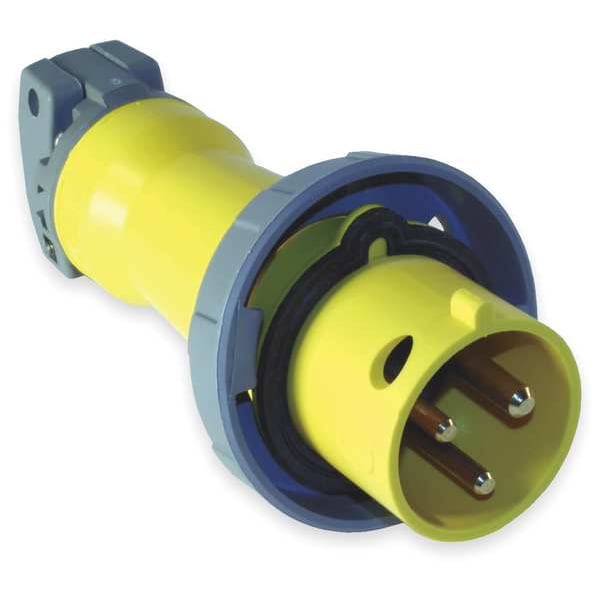

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Plug, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow, NEMA 4X HBL330P4W - main

Watertight Pin & Sleeve Plug, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow, NEMA 4X

  • Mfr # HBL330P4W

  • Zoro # G0724367

product price:  $309.15
/ea
Free Shipping & Returns

Key Features

Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL330P4W
Zoro #
G0724367
UPC #
783585403557
Country of Origin
United States

Dimensions

Overall Length
8.04 in
For Minimum Cable Diameter
0.5 in
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
1.25 in
Minimum Wire Size
12 AWG

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Yellow
Cap Type
No Cap or Cover
Standards
CSA Certified C22.2 No. 182.1, UL E146032, UL IEC 60309-1
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Features
Gasketed Sealing Ring Provides Watertight Seal
Body Material - Pin and Sleeve
Zytel 801 Nylon
Body Material
Zytel 801 Nylon
Grounding Style
IEC
Switch Rated
No
Shrouded
Yes
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
75 Degrees C
Housing Material
Non-Metallic
Horsepower Rating
2 hp
Reverse Service
No
NEMA Enclosure Rating
4X
Hub Style
Standard

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Solid one-piece pins for reliable electrical contact
• Gasketed sealing ring provides watertight seal
• Heavy duty external cord grips
