Shop HUBBELL WIRING DEVICE-KELLEMS

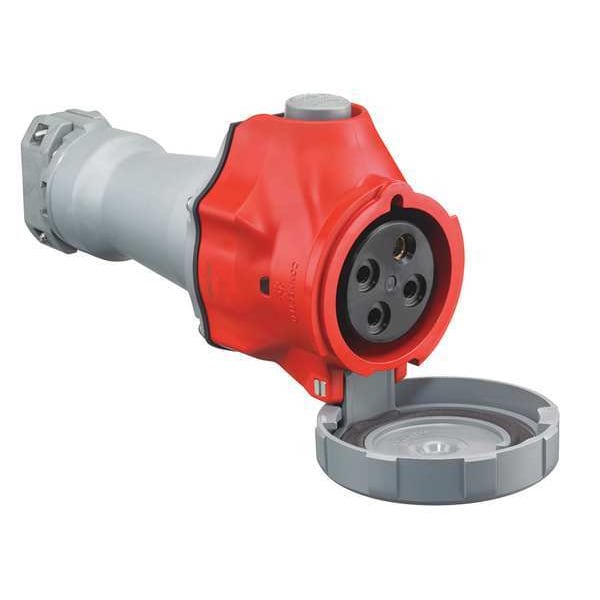

Watertight Pin & Sleeve Plug, 60 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X

  • Mfr # HBLS460C7W

  • Zoro # G0977118

product price:
$
870.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLS460C7W
Zoro #
G0977118
UPC #
783585478593
Country of Origin
United States

Dimensions

Maximum Wire Size
2 AWG
Outside Diameter
5.17 in
For Maximum Cable Diameter
1.45 in
For Minimum Cable Diameter
0.5 in
Overall Length
12.22 in
Minimum Wire Size
8 AWG
Wire Rope Length
12.22 in
Length
12.22 in

Details

Item
Watertight Pin & Sleeve Plug
Current Rating
60 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Features
Color Coded Housings for Easy Identification, Insulated Non-Metallic Housing, Self-Closing Gasketed Cover
HP
30 hp
Body Material - Pin and Sleeve
Valox 357
Power Indication
Yes
Switch Rated
Yes
Body Material
Valox 357
Housing Material Grade
Valox 357
Housing Material
PBT
NEMA Enclosure Rating
4X
Horsepower Rating
30 hp
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Power Indicating Light
Yes
Reverse Service
No
Shrouded
Yes
Contact Material
Beryllium Copper
Maximum Operating Temperature
75 Degrees C
For Environment
Wet
Compatible with Series
Advantage Switch-Rated
Series
Advantage Switch-Rated
Style
IP69k NEMA 4X
UL 94 Flammability Rating
V-0
Grounding
Grounded

Description

The HUBBELL Pin and Sleeve Connector is a pin & sleeve plug with NEMA 4X and IP68/IP69K enclosure ratings suitable for use in industrial electrical connections. It features a 3-pole, 4-wire configuration and is rated for 60 A at 480V AC in three-phase systems. The connector is part of the Advantage Switch-Rated series, compatible with IEC 60309-2 standards; can be used as a disconnecting means in motor and branch circuits when installed according to applicable codes. Its constructed with an insulated non-metallic housing (Valox 357 PBT), providing resistance to impact, corrosion, moisture, and harsh conditions.


Key Features of the HUBBELL Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for up to 60 A at 480V AC

  • Poles/Wires: Three poles, four wires (grounded)

  • Housing Material: Valox 357 PBT

  • Contact Material: Beryllium copper contacts

  • NEMA/IP Ratings: NEMA 4X enclosure; IP68/IP69K style for wet locations

  • Cable Accommodation: Accepts cable diameters from 0.5 in to 1.45 in; wire size range from #8 AWG to #2 AWG

  • Temperature Range: Operates between -40°C and +75°C

  • Power Indication: Equipped with power-indicating LEDs

  • Cover Type: Corrosion-resistant self-closing gasketed spring-loaded cap

  • Connection Orientation/Type: Straight orientation with screw terminal wire connection

  • Standards Compliance: CSA Certified LR280C; UL Classified to IEC 60309-1/-2; UL E146033 listed
