  6. Watertight Pin & Sleeve Receptacle, 125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red

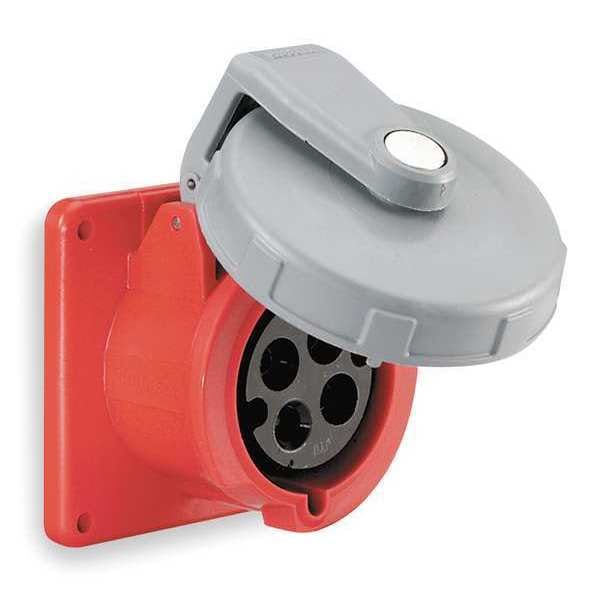

Hubbell Wiring Device-Kellems Watertight Pin & Sleeve Receptacle, 125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red HBL5100R6WP - main
Shop HUBBELL WIRING DEVICE-KELLEMS

Watertight Pin & Sleeve Receptacle, 125 A, 240/415V AC, Single Phase, 4 Pole, IEC Grounding, Red

  • Mfr # HBL5100R6WP

  • Zoro # G2996341

product price:  $665.55
/ea
Free Shipping & Returns

Key Features

Current Rating
125 A
Voltage Rating
240/415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL5100R6WP
Zoro #
G2996341
UPC #
783585405162
Country of Origin
United States

Dimensions

Face Diameter
4.71 in
Maximum Wire Size
1/0 AWG
Minimum Wire Size
3 AWG
Cord Size
2 to 1/0 AWG
Wire Size
#3 AWG to #1/0 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
125 A
Voltage Rating
240/415V AC
Phase
Single
Number of Poles
4
Number of Wires
5
IP Rating
IP68, IP69K
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Red
Cap Type
Spring-Loaded Cap
Standards
CSA Certified File LR280C, UL Classified/IEC 60309-1 IEC 60309-2, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Grounding Style
IEC
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Features
Color Coded
Switch Rated
No
Material
Thermoplastic
Housing Material Grade
Zytel 101
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Power Indicating Light
No
Housing Material
Thermoplastic
Shrouded
Yes
Horsepower Rating
30 hp
Number of Gangs
1
Reverse Service
No
Connection Orientation
Straight
Flange Type
Flanged
Minimum Operating Temperature
-40 Degrees C
Service
Standard
Temp. Rise
30°C
Flange Material
Zytel 101 Nylon
Flammability
UL 94 5VA, UL 94 V0
Dielectric Strength
3000V AC
Screw Material
300 Stainless Steel
Gasket Material
Neoprene
Weight
4.25 lb
Retainer Material
High-Impact Thermoset
UV Resistance
All Materials are UV Stabilized
Product Type
Watertight IEC Device
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Environmental Conditions
Watertight
Series
HBL Heavy Duty
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstand 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability -V-0 Environmental - Ingress Protection - Type 3R, 3RX, 4X and IP68, IP69k Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No. 182.1 / UL1682 Mechanical - Product Identification - Ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Number Of Conductors
5-Wire Grounding
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Material - Mounting Hardware
Screw Mounting
Style
Standard Service
Insulation
Insulated Body
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed to UL1682
Connection Type
Screw Terminals

Description

Watertight Devices - Hubbell’s IEC 60309 Pin and Sleeve plugs, connectors, inlets and receptacles are the highest performing products available. The HBL® series of IEC pin and sleeve were designed for the demanding North American market. Hubbell was the first and is still only manufacturer of IEC 60309 devices in the USA and have numerous innovative features noted below. The IEC line of plugs and connectors are made with a rugged super tough, one-piece housing. The thermoset polyester contact carrier provides a high resistance to electrical tracking. They withstand higher temperatures which may result from overload or arcing. The heavy-duty, external cord grip provides superior strain relief on the conductors. Hubbell’s horsepower rated plugs and receptacles meet NEC 430.109(F) requirements and recognized as an approved disconnecting “line of sight” disconnecting means.
• Insulated Non-Metallic housing
• Color coded housings by voltage for easy identification
• Corrosion-resistant self-closing gasketed cover
