Shop HUBBELL WIRING DEVICE-KELLEMS

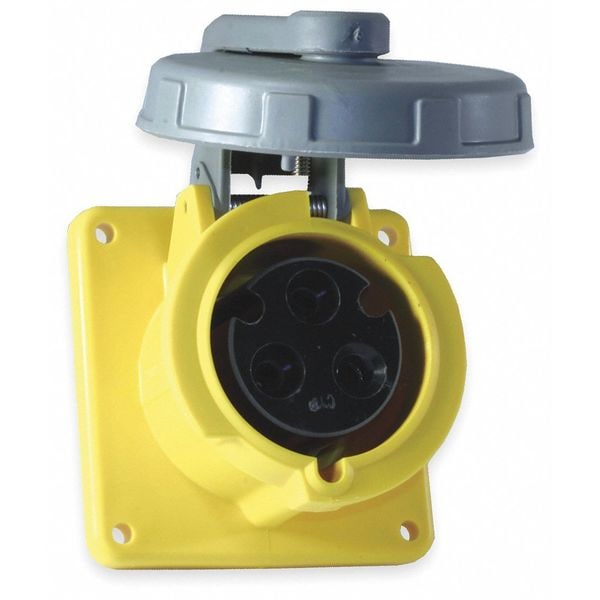

Watertight Pin & Sleeve Receptacle, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

  • Mfr # HBL360R4W
  • Zoro # G1582716
product price:
$
407.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL360R4W
Zoro #
G1582716
UPC #
783585403854
Country of Origin
United States

Dimensions

Face Diameter
4.15 in
Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Cord Size
8 to 2 AWG
Fits Chest Size
Color Coded

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
60 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP67
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Housing Color
Yellow
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 0.17, CSA Certified C22.2 No. 182.1, IEC, UL 1682, UL 94
Resistance Properties
Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Grounding Style
IEC
Features
Color Coded
Body Material
Zytel 101 Nylon
Body Material - Pin and Sleeve
Zytel 101 Nylon
Number of Gangs
1
Reverse Service
No
Flange Type
Flanged
Maximum Operating Temperature
75 Degrees C
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Housing Material Grade
Zytel 101
Shrouded
Yes
Housing Material
Thermoplastic
Power Indicating Light
No
Connection Orientation
Straight
Horsepower Rating
2 hp
Weight
2.3 lb
Gasket Material
Neoprene
Service
Standard
Retainer Material
High-Impact Thermoset
Product Type
Watertight IEC Device
Flange Material
Zytel 101 Nylon
Temp. Rise
30°C
Dielectric Strength
3000V AC
Screw Material
300 Stainless Steel
Flammability
UL 94 HB or Better
Operating Temp.
-40 to 75°C
Grounding
Grounded
UL 94 Flammability Rating
HB

Description

The HUBBELL IEC Pin and Sleeve Receptacle is a watertight electrical device intended for industrial applications, rated for 60A and 125V AC. This single-phase receptacle features a straight connection orientation and accommodates wire sizes from 8 to 2 AWG. Constructed with materials rated for impact, moisture, and temperature resistance, it offers durability in demanding environments. The unit includes a spring-loaded cap with neoprene gasket.


Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:

  • Current/Voltage Rating: Rated for 60 amps at 125V AC (single phase)

  • Body/Housing Material: Made from Zytel 101 nylon thermoplastic

  • IP/NEMA Rating: IP67 ingress protection; NEMA Type 4X enclosure

  • Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG

  • Operating Temperature Range: -40°C to +75°C maximum operating temperature

  • Flange Type: Flanged design with screw terminal wire connections

  • Number of Poles/Wires: Two poles, three wires; grounded per IEC style

  • Cap/Gasket Material: Spring-loaded cap with neoprene gasket

  • Color Coding/Identification: Yellow color-coded housing aids identification in installations

  • Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682 & UL94 HB flammability rating, IEC standards
