Shop HUBBELL WIRING DEVICE-KELLEMS

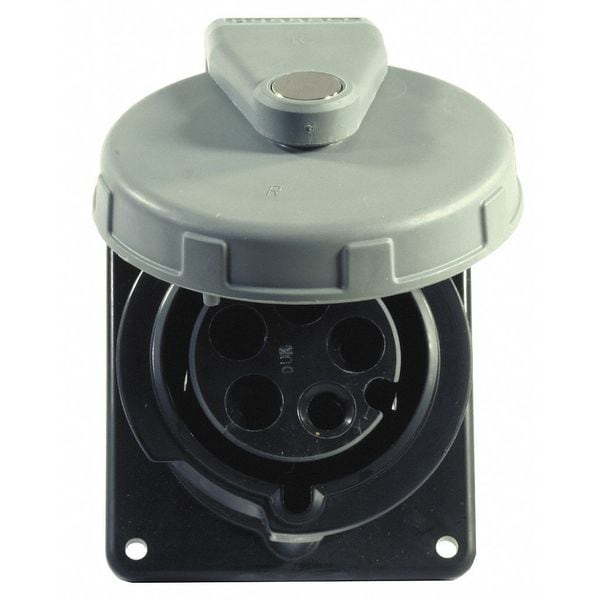

Watertight Pin & Sleeve Receptacle, 30 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black

  • Mfr # HBL530R5W

  • Zoro # G3711955

product price:
$
353.70
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBL530R5W
Zoro #
G3711955
UPC #
783585405506
Country of Origin
United States

Dimensions

Face Diameter
3.88 in
Minimum Wire Size
12 AWG
Maximum Wire Size
8 AWG
Cord Size
12 to 8 AWG
Wire Size
#12 AWG to #8 AWG
Display Size
Standard Sized Product

Details

Item
Watertight Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP67
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Black
Cap Type
Spring-Loaded Cap
Standards
CSA Certified C22.2 No. 182.1, IEC 60309-2, UL E146032, UL IEC 60309-1
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Body Material
Zytel 101 Nylon
HP
10 hp
Features
Color Coded
Body Material - Pin and Sleeve
Zytel 101 Nylon
Switch Rated
No
Grounding Style
IEC
Material
Thermoplastic
Housing Material Grade
Zytel 101
Market
Industrial
Power Indicating Light
No
Connection Orientation
Straight
Shrouded
Yes
Number of Gangs
1
Horsepower Rating
10 hp
Flange Type
Flanged
Reverse Service
No
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Housing Material
Thermoplastic
Screw Material
300 Stainless Steel
Flammability
UL 94 5VA, UL 94 V0
Temp. Rise
30°C
UV Resistance
All Materials are UV Stabilized
Product Type
Watertight IEC Device
Retainer Material
High-Impact Thermoset
Dielectric Strength
3000V AC
Service
Standard
Weight
1.8 lb
Flange Material
Zytel 101 Nylon
Gasket Material
Neoprene
Operating Temp.
-40 to 75°C
Application
High Ampacity Watertight Connections
Environmental Conditions
Watertight
Material - Mounting Hardware
Screw Mounting
Wattage
18000
Series
HBL Heavy Duty
Style
Standard Service
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Electrical - Temperature Rise - Max. 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Industry Standard(s)
CSA StandardC22.2 No. 182.1 UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146032
Connection Type
Screw Terminals
UL 94 Flammability Rating
HB
Grounding
Grounded

Description

The HUBBELL IEC Pin and Sleeve Receptacle, 30A, 600V is an electrical device rated for use with 30A, 600V connections in industrial settings. This receptacle features a straight connection orientation with pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. Constructed with Zytel 101 nylon and thermoplastic materials, it offers resistance to corrosion, impact, moisture, and UV exposure. The unit is grounded according to IEC standards and includes a spring-loaded cap.


Key Features of the HUBBELL IEC Pin & Sleeve Watertight Receptacle:

  • Current/Voltage Rating: Rated for 30 A at 347/600V AC (three-phase), suitable for demanding power requirements.

  • Ingress Protection: IP67 rated enclosure.

  • Material Construction: Housing made from Zytel 101 nylon; gasket constructed of neoprene; retainer uses high-impact thermoset material.

  • Cord Accommodation: Accepts cord sizes ranging from #12 AWG to #8 AWG.

  • Operating Temperature Range: Rated to operate within -40°C to 75°C operating temperature range.

  • Flammability Ratings: Meets UL 94 HB or better; housing meets UL 94 V0/5VA standards.

  • Mounting Type: Flanged design with screw mounting hardware included.

  • Color Coding & Identification: Color coded housings aid in easy identification; permanent product ratings on housing per North American and IEC conventions.

  • Standards Compliance: Certified to CSA C22.2 No.182.1, UL E146032, IEC 60309-1/-2 standards.
