Shop HUBBELL WIRING DEVICE-KELLEMS

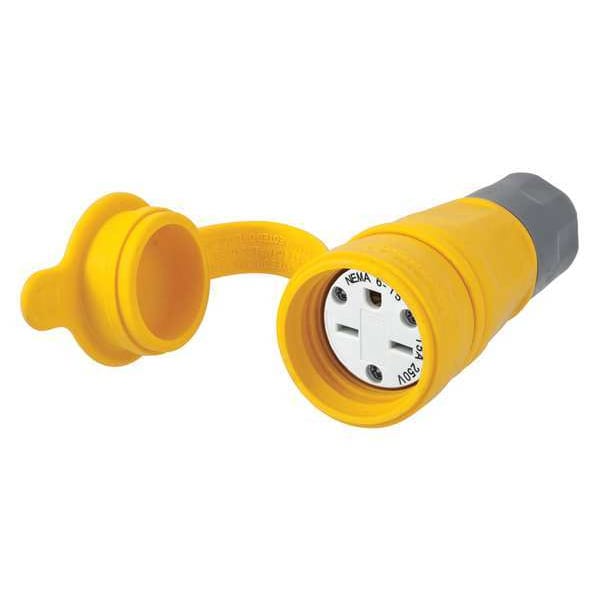

Watertight Straight Blade Connector, 6-15R, 15 A, 250V AC, 2 Pole, 3 Wire, Screw Terminals, Yellow

  • Mfr # HBL15W49

  • Zoro # G0074929

product price:
$
51.95
/ea

Key Features

NEMA Receptacle Configuration
6-15R
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL15W49
Zoro #
G0074929
UPC #
783585131306
Country of Origin
Multiple
Item
Watertight Straight Blade Connector
NEMA Receptacle Configuration
6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Yellow
Cap Type
Screw-On Cap
IP Rating
IP69K
Standards
ANSI, CSA Certified, UL Listed, NEMA WD-1, NEMA WD-6
Resistance Properties
Corrosion Resistant, Impact Resistant
Power Indicator
No
Antimicrobial
No
NEMA Configuration
6-15
NEMA Plug Configuration - Plugs and Receptacles
6-15R
Grade
General Use
Material
Thermoplastic Elastomer/Valox
Grade - Plugs and Receptacles
Industrial
Voltage
250VAC
Corrosion Resistant
No
Housing Material
Thermoplastic Elastomer
Insulation Material
Nylon
Power Indicating Light
No
Polarized
Yes
Contact Material
Nickel-Plated Brass
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1/2 hp
Market
Commercial, Industrial
Maximum Operating Temperature
60 Degrees C
Dielectric Strength
2500V AC
UV Resistance
All Exposed Materials are UV Stabilized
Temp. Rise
30°C
Retainer Material
Clear Polycarbonate
Body Material
Thermoplastic Elastomer
Bushing Material
Black Elastomer
Operating Temp.
-40 to 60°C
Series
Watertight Devices

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Yellow, NEMA Receptacle Configuration 6-15R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Corrosion Resistant, Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type Press-On Cap, For Maximum Cable Diameter 0.63 in, For Minimum Cable Diameter 0.38 in, Grade General Use, Grounding Grounded, Horsepower Rating 1/2 hp
