  6. Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

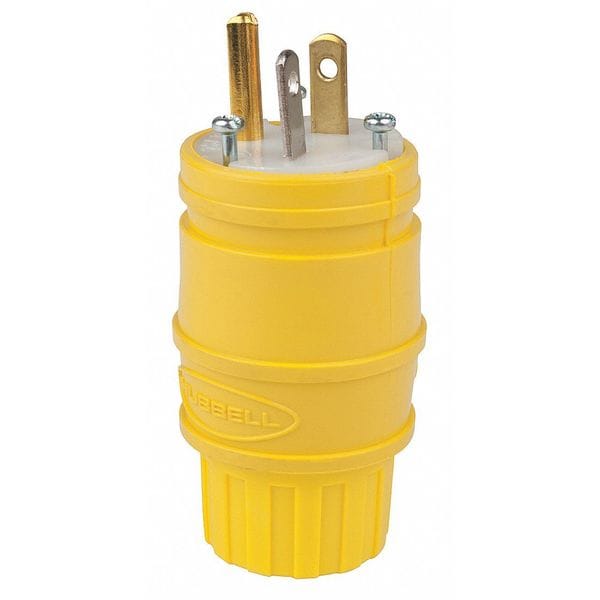

Hubbell Wiring Device-Kellems Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL14W33 - main

Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL14W33

  • Zoro # G2000345

product price:  $34.16
/ea

Key Features

NEMA Plug Configuration
5-20P
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL14W33
Zoro #
G2000345
UPC #
783585013329
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.655 in
For Minimum Cable Diameter
0.30 in
Cord Size
0.300 in to 0.655 in
Body Length
2.67 in
Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Dimensions
2.67 in x 1.55 in x 2.67 in
Width
1.55 in
Length
2.67 in
Wire Size
#18 AWG to #12 AWG
Display Size
Standard Sized Product
Height
2.67 in

Details

Item
Watertight Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP55
Standards
CSA C22.2, UL 498
Resistance Properties
Watertight
Grade - Plugs and Receptacles
General
NEMA Configuration
5-20
Corrosion Resistant
Yes
Material
PVC
Phase - Plugs and Receptacles
1
Special Features
Corrosion resistant
Antimicrobial
No
Voltage
125VAC
Grade
General
HP
1.0
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Insulation Material
Elastomer
Polarized
Yes
Market
Commercial, Industrial
Housing Material
Polycarbonate
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
167 Degrees F
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Dielectric Strength
2000V
Retainer Material
Clear Polycarbonate
Flammability
UL 94 V2
Contact Material
Brass, Copper Alloy
Product Type
Watertight Plug
Temp. Rise
30°C
Weight
0.2 lb
Operating Temp.
-40 to 75°C
Horsepower - Maximum
0.5
Application
Industrial/Commercial Grade
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Performance
Electrical:Current Interrupting Certified for current interrupting at full rated current,Dielectric Voltage Withstands 2,000V minimum MechanicalProduct Identification Ratings are a permanent part of the device Terminal Accommodation #18-#12 AWG. Stranded copper wire only. Terminal Identification:Terminals identified in accordance with UL 498 and CSA Environmental:Flammability UL 94 V-2,IP Suitability IP55,Operating Temperatures: Maximum continuous 75°C minimum -40°C (w/o impact)
Series
Elastogrip
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
CSA Certified to C22.2 No. 42 File 280 NEMA® WD-6 Compliant UL Listed to UL498 File E1706

Description

The HUBBELL 3 Wire Watertight Straight Blade Plug is a Plug rated IP55 for use in environments where moisture or contaminants may be present. Rated for 20A at 125VAC, this plug features a thermoplastic elastomer housing with a weatherproofing shroud intended to cover the connection between the plug and connector. A nylon compression nut that provides additional resistance to water and dust ingress around the cord helps prevent water and dust ingress around the cord, making it suitable for use where moisture or contaminants may be present.


Key Features of the HUBBELL 3 Wire Watertight Straight Blade Plug:

  • Amperage/Voltage: Rated for 20A, 125V AC

  • NEMA Configuration: 5-20P, straight blade design

  • Watertight Construction: IP55 rated with corrosion-resistant materials

  • Housing Material: Thermoplastic elastomer body with polycarbonate components

  • Cord Accommodation: Accepts cords from 0.300 in to 0.655 in diameter (#18 AWG to #12 AWG wire size)

  • Connection Type: Screw terminals; grounded (3-wire)

  • Operating Temperature Range: -40°C to +75°C continuous operation

  • Standards Compliance: UL Listed (UL498), CSA Certified (C22.2 No.42), NEMA WD-6 compliant
