  6. Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

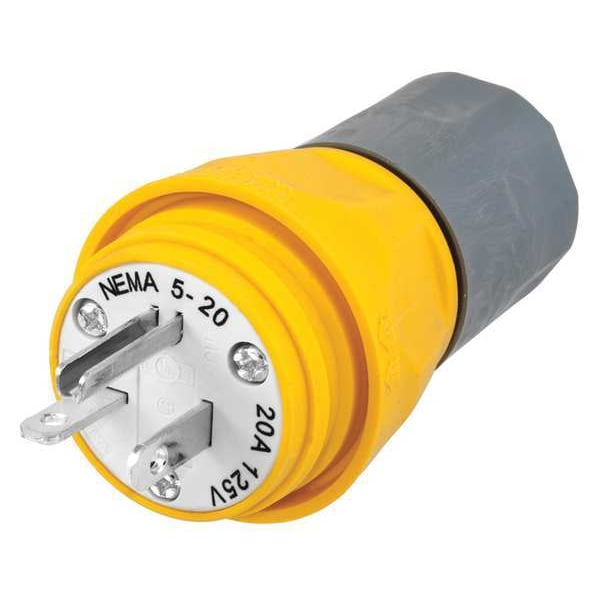

Hubbell Wiring Device-Kellems Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded HBL14W33A - main

Watertight Straight Blade Plug, 5-20P, 20 A, 125V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # HBL14W33A

  • Zoro # G0070135

product price:  $33.35
/ea

Key Features

NEMA Plug Configuration
5-20P
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HBL14W33A
Zoro #
G0070135
UPC #
783585131184
Country of Origin
Multiple

Dimensions

For Maximum Cable Diameter
0.625 in
For Minimum Cable Diameter
0.375 in
Cord Size
0.300 in to 0.625 in

Details

Item
Watertight Straight Blade Plug
NEMA Plug Configuration
5-20P
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Grounding
Grounded
Housing Color
Yellow
IP Rating
IP69K
Standards
ANSI, CSA C22.2, UL 498
Resistance Properties
Corrosion Resistant
Grade
Industrial
Special Features
Corrosion resistant
NEMA Configuration
5-20
Number of Wires
3
Material
Thermoplastic Elastomer/Valox
Grade - Plugs and Receptacles
Industrial
Corrosion Resistant
Yes
NEMA Plug Configuration - Plugs and Receptacles
5-20P
Voltage
125VAC
HP
1.0
Antimicrobial
No
Phase - Plugs and Receptacles
1
Maximum Operating Temperature
140 Degrees F
Horsepower Rating
1 hp
Polarized
Yes
Insulation Material
Thermoplastic Elastomer
Market
Commercial, Industrial
Minimum Operating Temperature
-40 Degrees F
Housing Material
Thermoplastic Elastomer
Contact Material
Nickel Plated Brass
Bushing Material
Black Elastomer
UV Resistance
All Exposed Materials are UV Stabilized
Body Material
Thermoplastic Elastomer
Temp. Rise
30°C
Dielectric Strength
2500V AC
Retainer Material
Clear Polycarbonate
Operating Temp.
-40 to 60°C
Industry Standard(s)
IP69K rating Listed to UL498 Certified to CSA C22.2 No. 42 Meets NEMA WD-1, WD-6 And ANSI Standards UL Listed, CSA Certified to Type 4, 4X, 12, 6, 6P
Temperature Rating
-40°C (without impact) to +60°C continuous
Operating Temperature
-40°C (without impact) to +60°C continuous
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical:Current Interrupting Rated for current interruption per UL498 Dielectric Voltage: 2500V AC Max Working Voltage As marked Temperature Rise: 30°C max per UL498 at rated current Mechanical:Cord Accomodation: 0.375"-0.625" (9.5-15.9) Environmental:Moisture Resistance UL Listed 4, 4X, 12, 6, 6P Operating temperatures -40°C (without impact) to +60°C continuous UV resistance All exposed materials are UV stabilized
Series
Watertight Devices

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Yellow, IP Rating IP69K, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.625 in, For Minimum Cable Diameter 0.375 in, Grade Industrial
