  6. Watertight Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

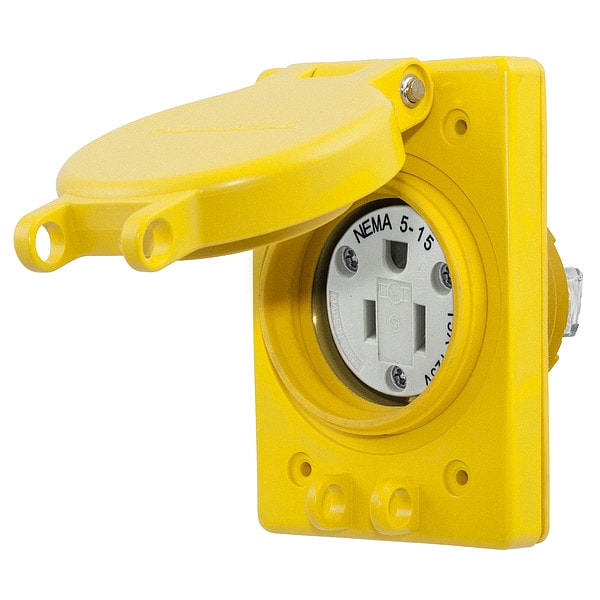

Hubbell Wiring Device-Kellems Watertight Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL60W47 - main

Watertight Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # HBL60W47

  • Zoro # G0069931

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL60W47
Zoro #
G0069931
UPC #
783585456577
Country of Origin
United States

Dimensions

Mount Hole Center-to-Center Width
1.9 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Watertight Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
IP Rating
IP69K
Standards
CSA Certified, NSF, UL Listed
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, UV/Sunlight Resistant, Weather Resistant
Flange Type
Non-Flanged
Tamper Resistant
No
Application Environment
Industrial
NEMA Rating
3R, 3RX, 4, 4X
Corrosion Resistant
No
Weather Resistant
Yes
Mounting Type
Flush
Mounting Type - Plugs and Receptacles
Flush
Surge Suppression
No
Weather Resistant - Plugs and Receptacles
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Single Receptacles
Number of Gangs
1
Outlet Type
Single
Outlet Type - Plugs and Receptacles
Single
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
No
Voltage
125VAC
NEMA Configuration
5-15
Material
Thermoplastic Elastomer, Stainless Steel
Includes
Mounting Hardware
AFCI
No
Includes Mounting Hardware
Yes
Cover Type
Flip-Up Cover
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
1
GFCI
No
Housing Material
PBT
Surge Protection
No
Contact Material
Nickel-Plated Brass
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Market
Industrial
Shrouded
No
Connection Orientation
Straight
Grade
Marine
Dielectric Strength
2500V AC
Body Material
PBT
UV Resistance
All Exposed Materials are UV Stabilized
Retainer Material
Clear Polycarbonate
Temp. Rise
30°C
Operating Temp.
-40 to 60°C
Series
Watertight Devices

Description

Watertight Receptacle, Connection Orientation Straight, Cover Type Flip-Up Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Housing Color Yellow, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Moisture Resistant, UV/Sunlight Resistant, Standards CSA Certified, NSF, UL Listed
