Product Information
MFR #
HDA 4475-B-3000 PSI
Zoro #
G310804050
UPC #
-
Country of Origin
United States
Dimensions
Gauge Connection Size
9/16-18"
Details
Max. Pressure (PSI)
14500 psi
Gauge Operating Temp. Range
-13 to 185 °F
Gauge Connection Type
UNF2A (SAE 6 Male)
Electrical Connections - Transmitter
Male, 3 Pole + PE, EN175301-803 (DIN 43650) (Connector Supplied)
Standards
CE Mark EN 61000-6-1/2/3/4
Description

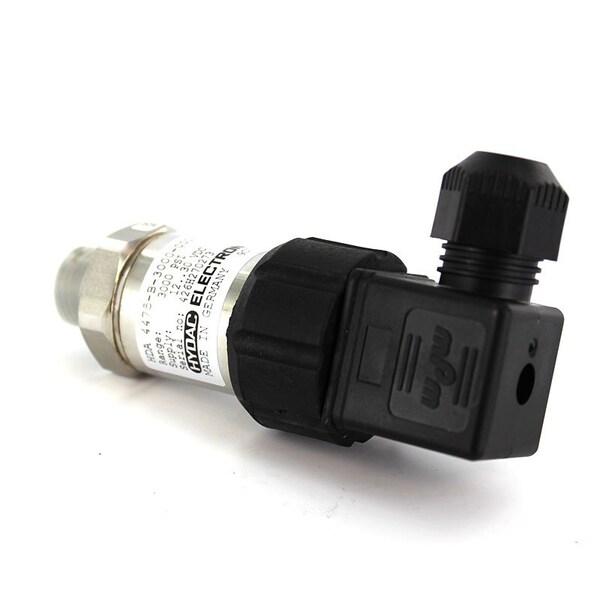

The pressure transmitter series HDA 4400 has a pressure measurement cell with thin-film strain gauge on a stainless steel membrane. The 4 to 20 mA or 0 to 10 V output signals enable connection to all HYDAC ELECTRONIC GMBH measurement and control devices as well as connection to standard evaluation systems e.g. PLC controls.The main areas of application are in the mobile or industrial sectors of hydraulics and pneumatics, particularly in applications with restricted installation space.Features:Highly Robust Sensor CellVery Small Temperature ErrorExcellent EMC CharacteristicsVery Compact DesignCompetitive Price / Performance Ratio
