  9. Line Voltage Monitor, Manual or Automatic Reset, 80 to 300, Single, -

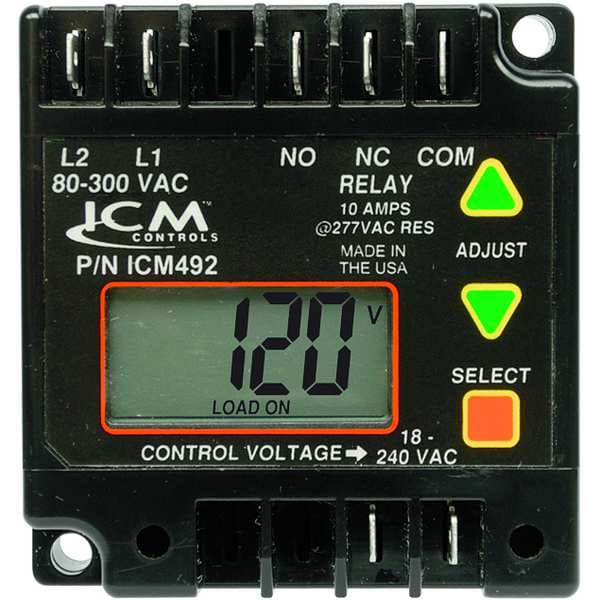

Icm Line Voltage Monitor, Manual or Automatic Reset, 80 to 300, Single, - ICM492D - main

Line Voltage Monitor, Manual or Automatic Reset, 80 to 300, Single, -

  • Mfr # ICM492D

  • Zoro # G3342577

product price: $124.99
/ea
Free Shipping & Returns

Key Features

Application
HVACR
Voltage
80 to 300
Phase
Single
Frequency
50/60 Hz
Contact Rating (Amps)
10 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ICM492D
Zoro #
G3342577
UPC #
800442014166
Country of Origin
United States

Dimensions

Width
3 1/4 in
Depth
3 in
Height
1 3/8 in
Overall Height
1 3/8 in
Overall Length
3 in
Overall Width
3 3/16 in

Details

Application
HVACR
Voltage
80 to 300
Phase
Single
Frequency
50/60 Hz
Item
Line Voltage Monitor
Contact Rating (Amps)
10 A
Agency Compliance
cUL, UL
Control Volts
24-240
NC Output (Amps)
10 A
% Volts Unbalance
5 to 25, Adj.
Memory Storage
5-Fault
Type
Manual or Automatic Reset
Includes
LCD Display
Time Delay
0 to 12 min
Response Time (ms)
0.1-10 sec
For Use With
1 Phase Equipment
Hz
50/60
Monitors
High/Low Voltage, Voltage Unbalance
N.O. Output (Amps)
10 A
Temp. Rating (F)
-40 to 167
Standards
cUL
Display Type
LCD
Normally Closed Output Current
10 A
Operating Temperature - Maximum
158 Degrees F
Minimum Voltage Measurement
80V AC
True RMS
True-RMS Measuring
Reset Type
Automatic Reset
Maximum Control Voltage
240V AC
Minimum Contol Voltage
18V AC
Operating Temperature - Minimum
-40 Degrees F
Monitored Measurements
Line Voltage
Contact Form
SPDT
Normally Open Output Current
10 A
Percentage Volts Unbalance
5 to 25%, Adj.
Delay Type
Adjustable Anti-Short Cycle
Programmable
Programmable
Maximum Voltage Measurement
300V AC

Description

Line Voltage Monitor, Contact Form SPDT, Delay Type Adjustable Anti-Short Cycle, Display Type LCD, Frequency 50/60 Hz, Maximum Control Voltage 240V AC, Maximum Voltage Measurement 300V AC, Memory Storage 5-Fault, Minimum Contol Voltage 18V AC, Minimum Voltage Measurement 80V AC, Monitored Measurements Line Voltage, Normally Closed Output Current 10 A, Normally Open Output Current 10 A, Operating Temperature - Maximum 158 Degrees F, Operating Temperature - Minimum -40 Degrees F
