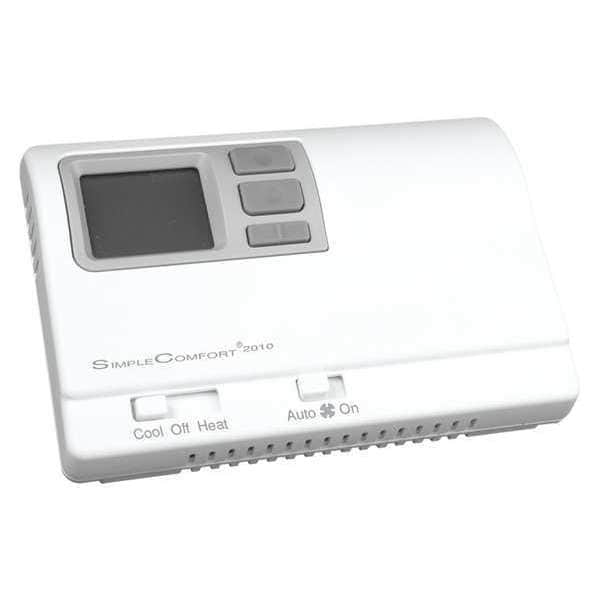

Non-Programmable Thermostat, 1 H, 1 C, Dual, 18/30VAC

  • Mfr # SC2010L

  • Zoro # G8041531

product price:
$
68.49
/ea

Key Features

Voltage
18/30VAC
Stages Heat
1
Color
White
Control Range
45 Degrees F to 90 Degrees F
System Switching
Heat-Cool-Off
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SC2010L
Zoro #
G8041531
UPC #
800442012605
Country of Origin
United States

Dimensions

Height
1 1/8"
Width
5 1/2"
Depth
1 in
Overall Width
5 1/2 in
Overall Height
3 3/4 in
Overall Depth
1 1/8 in

Details

Item
Non-Programmable Thermostat
Voltage
18/30VAC
Stages Heat
1
Color
White
Control Range
45 Degrees F to 90 Degrees F
System Switching
Heat-Cool-Off
Stages Cool
1
Dual Transformer Compatible
Yes
Power Method
Dual
750mV Compatible
No
Fan Switching
Auto-On
Dehumidification Control
No
Humidification Control
No
Occupancy Sensor
No
Filter Indicator
No
Low Battery Indicator
No
Terminal Designations
RC,RH,C,W,Y,O,B,G
Temporary Program Override
No
Temporary Temperature Hold
No
For Use With
Heating and Cooling
Programmable Fan
No
Key Pad Lockout
Yes
Features
Keypad Lockout, Freeze Protection, 4 or 5 Wire Compatible, Field Adjustable Calibration, East Access Terminal Block, Permanent Memory, ICM Patented Thermal Intrusion Barrier
Automatic Changeover
No
Display
Digital
Battery Backup
Yes
Batteries Included
Yes
Temperature Limiting
No
Includes
Operation and Application Guide, SC2010L Thermostat on Base, Cover
Control Type
Slide Switch
Programming Capability
Not Programmable
Number of Cooling Stages - Conventional System
1
Changeover Type
Manual
Mounting Direction
Horizontal
Thermostat Type
Low Voltage
Application
Heat and Cool
Compatible System Type
Heat and Cool
Number of Heating Stages - Conventional System
1
Electrical Connection Type
Hardwired
Temperature Sensitivity
+/-1 Degrees F
Battery Type
(2) AAA Batteries
Temperature Control Range
45 Degrees to 90 Degrees F
System/Fan Settings
Cool-Heat-Off/Auto-On
System Settings
Cool-Heat-Off
Fan Settings
Auto, On
Millivolt Compatible
No

Description

Low Voltage Thermostat, Heat and Cool, Manual, Compatible System Type Heat and Cool, Slide Switch, Dehumidification Control No, Dual Transformer Compatible Yes, Fan Settings Auto, On, Humidification Control No, Key Features Freeze Protection, High Temperature Protection, Key Pad Lockout Yes, Mounting Direction Horizontal, Number of Cooling Stages - Conventional System 1, Number of Heating Stages - Conventional System 1, Overall Depth 1 1/8 in, Overall Height 3 3/4 in, Overall Width 5 1/2 in
