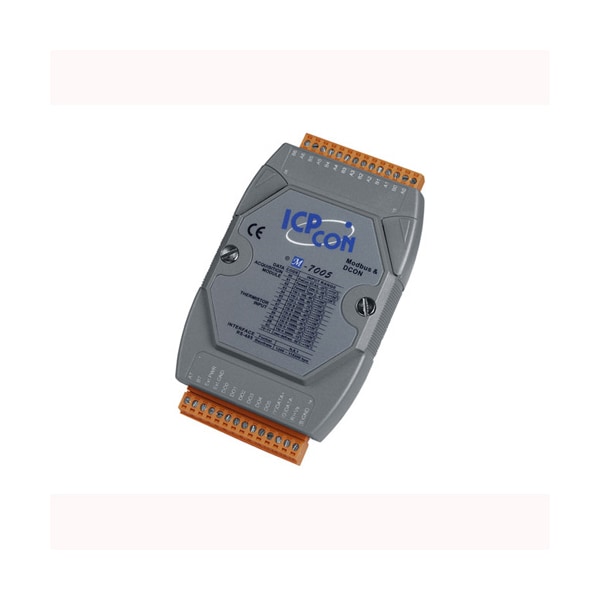

Icp Das RS-485 Remote I/O Module, M-7005 M-7005 - main

RS-485 Remote I/O Module, M-7005

  • Mfr # M-7005

  • Zoro # G700491570

product price: $816.99
/ea
Free Shipping & Returns

Key Features

Output Type
NPN, Sink, Open Collector to 30V
Resolution
16-bits
Humidity
5 to 95%, non-condensing
Watchdog
Yes, Module, Communication (Programmable over DCON)
Intra-module Isolation, Field to Logic
3000 VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-7005
Zoro #
G700491570
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Output Type
NPN, Sink, Open Collector to 30V
Resolution
16-bits
Humidity
5 to 95%, non-condensing
Watchdog
Yes, Module, Communication (Programmable over DCON)
Intra-module Isolation, Field to Logic
3000 VDC
Individual Channel Configurable
Yes
Output Load
100mA max. per channel
Baud Rate
1200~115200 bps
Sampling Rate
8 samples/second (Total)
Normal Mode Rejection
100dB
Interface Format
N, 8, 1
Power Consumption
1.3 W
Thermistor Type
Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI ; B3000; YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined
Input Channels
8 differential
Input Type
Thermistor
Open Wire Detection
Yes
1 LED
as Power/ Communication indicator
Common Mode Rejection
86dB
Accuracy
+/- 0.1%
Input Voltage Range
+10 ~ +30 Vdc
Zero Drift
+/-20uV/°C
Storage temperature
-40 to 85°C
Operating temperature
-25 to 75°C
Support Modbus and DCON Protocol
Yes
Output Channels
6
Interface
RS-485
Span drift
+/-25 ppm/°C
Voltage Input Impedance
>1M Ohms

Description

Modbus Version, 8-channel Thermistor Input and 6-channel Alarm Output Module
