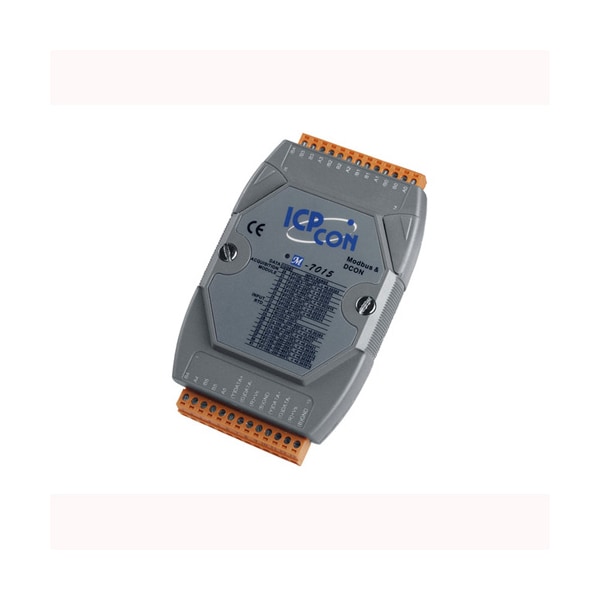

RS-485 Remote I/O Module, M-7015

  • Mfr # M-7015

  • Zoro # G200491568

product price:  $644.99
/ea
Free Shipping & Returns

Key Features

Interface
RS-485
Accuracy
+/-0.05%
Humidity
5 to 95% RH, non-condensing
Watchdog
Yes, Module, Communication (Programmable over DCON) firmware version ; B202 and later
Power Consumption
1.1W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-7015
Zoro #
G200491568
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

-3dB BandWidth
5.24Hz

Details

Interface
RS-485
Accuracy
+/-0.05%
Humidity
5 to 95% RH, non-condensing
Watchdog
Yes, Module, Communication (Programmable over DCON) firmware version ; B202 and later
Power Consumption
1.1W
Operating temperature
-25 to 75°C
Wire connection
2/3 wire
Zero Drift
+/-20uV/°C
Resolution
16-bit
Input
+10 to +30 Vdc
RTD Type
Pt100, Pt1000, Ni120, Cu100, Cu1000
Voltage Input Impedance
>1M Ohms
4KV ESD Protection
Yes, Contact for each terminal.
Baud Rate
1200 ~ 115200bps
Sampling Rate
12 samples/ second (Total)
Common Mode Rejection
Typical 86dB
Input Type
RTD
Support Modbus and DCON Protocol
Yes
Input Channels
6
Interface Format
N, 8, 1
Normal Mode Rejection
100 dB
Individual Channel Configurable
Yes
Span drift
+/-25ppm/°C
Storage temperature
-40 to 85°C
Open Wire Detection
Yes
Intra-module Isolation, Field to Logic
3000 VDC

Description

Modbus Version, 6 channels of RTD module
