  11. RS-485 Remote I/O Module, M-7016D

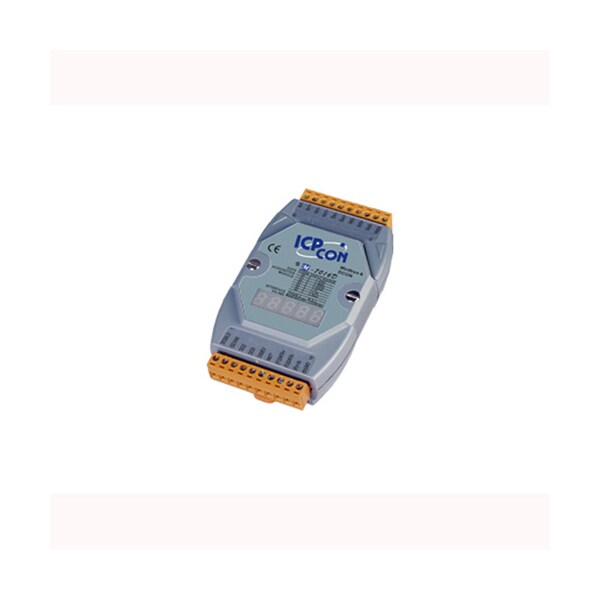

Icp Das RS-485 Remote I/O Module, M-7016D M-7016D - main

RS-485 Remote I/O Module, M-7016D

  • Mfr # M-7016D

  • Zoro # G800491593

product price: $773.99
/ea
Free Shipping & Returns

Key Features

Zero Drift
+/-20uV/°C
Power Consumption
1.2W
Sampling Rate
12 samples/ second (Total)
Interface Format
N, 8, 1
Span drift
+/-25ppm/°C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M-7016D
Zoro #
G800491593
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

-3dB BandWidth
5.24Hz

Details

Zero Drift
+/-20uV/°C
Power Consumption
1.2W
Sampling Rate
12 samples/ second (Total)
Interface Format
N, 8, 1
Span drift
+/-25ppm/°C
Operating temperature
-25 to 75°C
Support Modbus and DCON Protoco
Yes
Baud Rate
1200 ~ 115200bps
Wire connection
2/3 wire
Interface
Modbus RTU, RS-485
Input
+10 to +30 Vdc
Intra-module Isolation, Field to Logic
3000 VDC
Accuracy
+/-0.05%
Individual Channel Configurable
Yes
RTD Type
Pt100, Pt1000, Ni120, Cu100, Cu1000
Voltage Input Impedance
>1M Ohms
Storage temperature
-40 to 85°C
3-wire RTD lead resistance elimination
Yes
Input Channels
6
Resolution
16-bit
Humidity
5 to 95% RH, non-condensing
Input Type
RTD
EFT Protection
4KV to Power, and 1KV to RS-485
Watchdog
Yes, Module, Communication (Programmable over DCON) frmware version B202 ; and later
Common Mode Rejection
Typical 86dB
Open Wire Detection
Yes
ESD Protection
4KV Contact for each terminal, and 8KV Air for random point
Normal Mode Rejection
100 dB

Description

M-7016 with LED display
