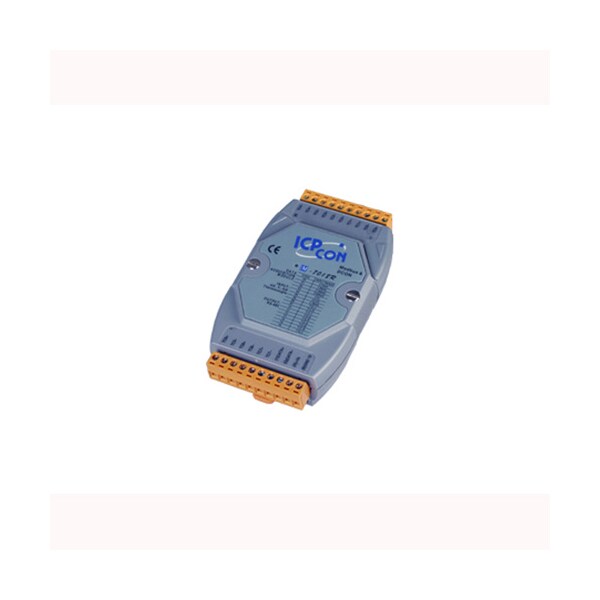

RS-485 Remote I/O Module, M-7018

  • Mfr # M-7018

  • Zoro # G700491709

product price:
$
509.99
/ea
Free Shipping & Returns

Key Features

Input Type
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V; +/-20mA (requires optional external 125 ohm resistor); Thermocouple Type J, K, T, E, R, S, B, N, C
Open Thermocouple Detection
No
Humidity
5 to 95% RH, non-condensing
Intra-module Isolation, Field to Logic
3000 VDC
Input Impedance
20M Ohms
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M-7018
Zoro #
G700491709
UPC #
-
Country of Origin
Taiwan, Province of China
Input Type
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V; +/-20mA (requires optional external 125 ohm resistor); Thermocouple Type J, K, T, E, R, S, B, N, C
Open Thermocouple Detection
No
Humidity
5 to 95% RH, non-condensing
Intra-module Isolation, Field to Logic
3000 VDC
Input Impedance
20M Ohms
Zero Drift
0.5uV/°C
Span drift
25ppm/°C
Input Channels
8 differential
Normal Mode Rejection
100dB
Input
+10 to +30 Vdc
Over voltage Protection
+/-35V
Interface Format
N, 8, 1
Power Consumption
1.0W
Sampling Rate
10 Samples/ Second
Interface
RS-485
Resolution
16-bit
Accuracy
+/-0.1%
Baud Rate
1200 ~ 115200bps
Operating temperature
-25 to 75°C
Common Mode Rejection
150dB
Support Modbus and DCON Protocol
Yes
Storage temperature
-40 to 85°C

Description

Modbus Version, 8 Thermocouple Inputs
