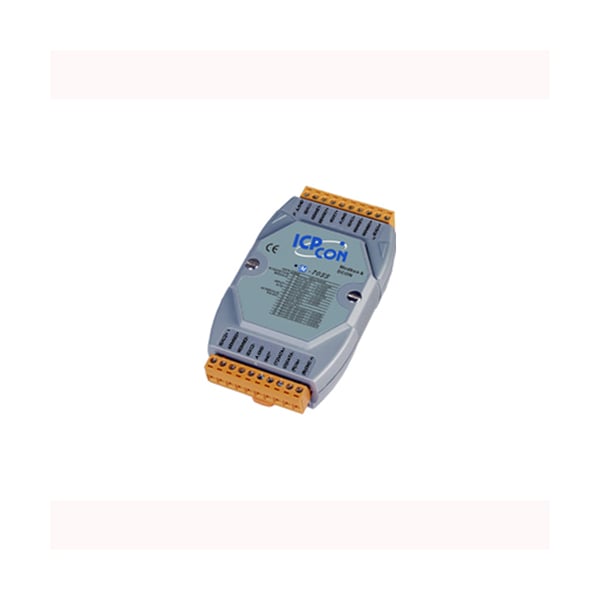

RS-485 Remote I/O Module, M-7033

  • Mfr # M-7033
  • Zoro # G700491617
product price:
$
519.99
/ea
Free Shipping & Returns

Key Features

Intra-module Isolation, Field to Logic
3000 VDC
Wire connection
2/3/4 wire
Baud Rate
1200 ~ 115200bps
Support Modbus and DCON Protocol
Yes
RTD Type
Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-7033
Zoro #
G700491617
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Band Width
15.7Hz

Details

Intra-module Isolation, Field to Logic
3000 VDC
Wire connection
2/3/4 wire
Baud Rate
1200 ~ 115200bps
Support Modbus and DCON Protocol
Yes
RTD Type
Pt100 α=0.00385, Pt100 α=0.003916, Ni120, Pt1000 α=0.00385
Accuracy
+/-0.1%
Interface Format
N, 8, 1
Common Mode Rejection
150dB min
Normal Mode Rejection
100dB min
Input Voltage Range
+10 to +30 VDC
Input Channels
3
Power Consumption
1.0 W (M-7033) / 1.6W (M-7033D)
Interface
RS-485
Humidity
5 to 95% RH, non-condensing
Zero Drift
+/-0.5uV/°C
Span drift
+/-25uV/°C
Open Wire Detection
Yes
Storage temperature
-40 to 85°C
Sampling Rate
15/12.5 samples/ secondwhile filter at 60/ 50Hz
Operating temperature
-25 to 75°C
Resolution
16-bit
Input Type
RTD

Description

Modbus Version, 3-channel RTD input module
