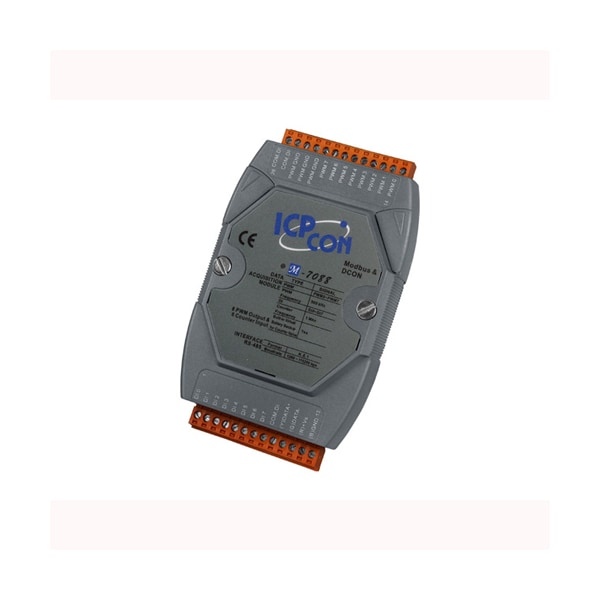

RS-485 Remote I/O Module, M-7088

  • Mfr # M-7088

  • Zoro # G100491699

product price:
$
513.99
/ea
Free Shipping & Returns

Key Features

Interface
RS-485
Operating temperature
-25 ~ 75°C
+/- 4 kV ESD , +/- 4 kV EFT and +/- 3 kV Surge Protection
Yes
Humidity
5 ~ 95%, non-condensing
Power reverse polarity protection
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-7088
Zoro #
G100491699
UPC #
-
Country of Origin
Taiwan, Province of China

Details

Interface
RS-485
Operating temperature
-25 ~ 75°C
+/- 4 kV ESD , +/- 4 kV EFT and +/- 3 kV Surge Protection
Yes
Humidity
5 ~ 95%, non-condensing
Power reverse polarity protection
Yes
Type
TTL, Isolated, Sink, Isolated
Duty Cycle
0.1%~99.9%
Trigger Start
Hardware or Software
ESD Protection (IEC 61000-4-2)
4 kV Contact for each terminal and 8 kV Air for random point
On Voltage Level
+2.4V~+5V
Baud Rate
1200 ~ 115200bps
Channels
8
Storage temperature
-40 ~ 85°C
Interface Format
N, 8, 1
Off Voltage Level
+1V Max.
Power Consumption
2.4 W (max.)
Input Voltage Range
10 ~ 30 VDC
Burst mode counter
1~65535 counts
Max. Counts
32-bits (4,294,967,295)
PWM Mode
Burst mode, Continuous mode
Isolation
2500 VDC
Max. Frequency
1MHz (Digital Input), 1Hz~500KHz (PWM Output)
Built-in Virtual Battery Backup for Counter Value
Yes

Description

Modbus Version, 8 Channel PWM Output and 8 Channel High Speed Counters
