  11. 7 in Wire Stripper Solid: 8 to 16 AWG, Stranded: 10 to 18 AWG
Ideal

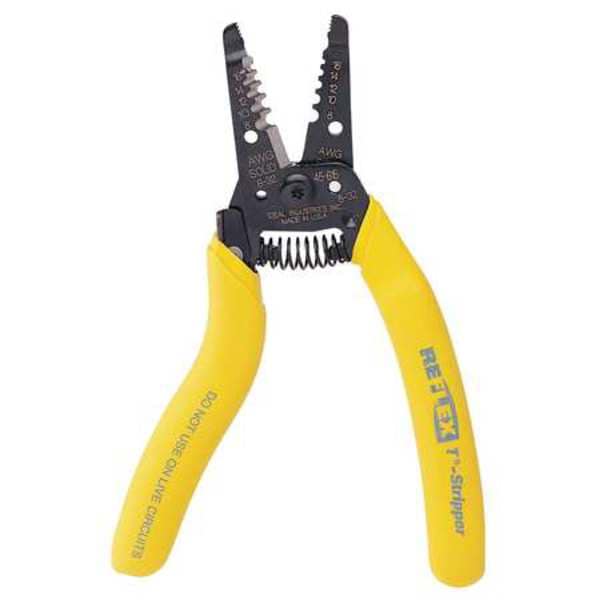

7 in Wire Stripper Solid: 8 to 16 AWG, Stranded: 10 to 18 AWG

Ideal 7 in Wire Stripper Solid: 8 to 16 AWG, Stranded: 10 to 18 AWG 45-615
Tap to zoom
Hover or click to zoom
$20.98
  • Capacity: Solid: 8 to 16 AWG, Stranded: 10 to 18 AWG
  • Overall Length: 7 in
  • Features: 6/32 and 8/32 Self-Chasing Screw-Cutting Holes
See full product details
Orders over $75 ship free.
Total: $20.98

Ideal #45-615 Specifications

  • Capacity: Solid: 8 to 16 AWG, Stranded: 10 to 18 AWG
  • Overall Length: 7 in
  • Features: 6/32 and 8/32 Self-Chasing Screw-Cutting Holes
  • Application: The Pocket-Locket (TM) Mechanism Holds The Stripper Tightly When The Tool Is Slipped From The Hands And It Is Color Coded For Easy Reference
  • Number of Pieces: 1
  • Handle Material: Plastic
  • Insulated / Uninsulated: Insulated
  • Handle Type: Ergonomic
  • Adjustable: Manual
  • Tether Capable: Tether Capable
  • Item: Wire Stripper
  • Functions: Strip/Cut
  • Insulated: No
  • Cable Type: Solid and Stranded
  • Tether Style: Standard Tool (Accessory Needed for Tethering)
  • Minimum Stripping Capacity - Stranded Wire: 18 AWG
  • Minimum Stripping Capacity - Solid Wire: 16 AWG
  • Tool Functions: Screw Shear
  • Cutting Capacities: 6 to 32 (Bolts), 8 to 32 (Bolts)
  • Minimum Wire/Cable Diameter: 18 ga
  • Stripping Capacity - Solid Wire: 8 AWG, 10 AWG, 12 AWG, 14 AWG, 16 AWG
  • Wire Stripper Location: Nose Side
  • Maximum Stripping Capacity - Stranded Wire: 10 AWG
  • Maximum Stripping Capacity - Solid Wire: 8 AWG
  • Stripping Capacity Range - Solid Wire: 16 AWG to 8 AWG
  • Maximum Wire/Cable Diameter: 8 ga
  • Grip Style: Standard Cushion
  • Overall Length Range: 6 - 8 in
  • Nose Shape: Narrow
  • Tether Ready: No
  • Body Material: Plastic
  • Stripping Capacity- Stranded Wire: 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG
  • Stripping Capacity Range - Stranded Wire: 18 AWG to 10 AWG
  • Adjustment Mechanism: Manual
  • Country of Origin (subject to change): United States

Description

Wire Stripper, Insulated Yes, Overall Length 7 in, Capacity 8 to 16 AWG, Cable Type Solid and Stranded, Standard Tool (Accessory Needed for Tethering), Functions Strip/Cut, Adjustable Manual, Handle Type Ergonomic, Dipped, Handle Material Plastic, Features 6/32 and 8/32 Self-Chasing Screw-Cutting Holes, Locking Pawl
