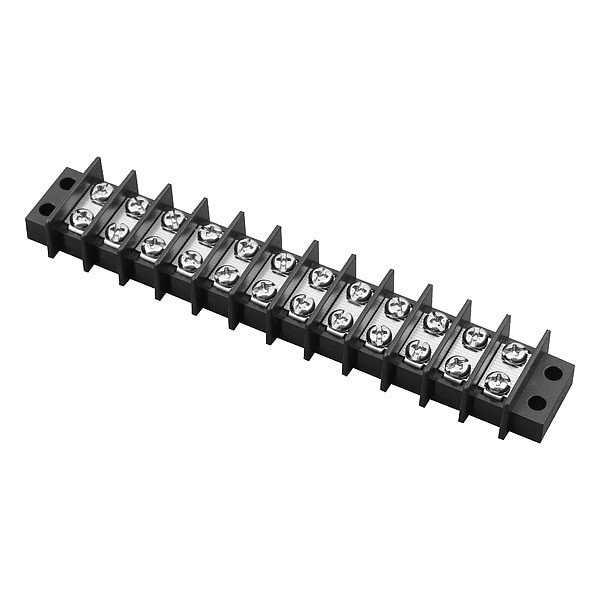

BarrierTerminalStrip, 25A, 12AWGMax, 300V
Mfr # 89-412
Zoro # G522414030
product price:Â $20.49
/ea
Sold in multiples of 10 for $204.90
Key Features
Termination Screw Size
#6-32
Maximum Voltage
300 V
Overall Width
5.68 in
Minimum Operating Temperature
-40 Degrees F
Screw Type
Phil-Slot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 89-412
- Zoro #
- G522414030
- UPC #
- 783250894123
- Country of Origin
- China
Dimensions
- Termination Screw Size
- #6-32
- Overall Width
- 5.68 in
- For Minimum Wire Size
- 22 AWG
- Overall Height
- 0.56 in
- Wire Rope Length
- 6 in
- For Maximum Wire Size
- 12 AWG
Details
- Maximum Voltage
- 300 V
- Item
- Barrier Terminal Strip
- Minimum Operating Temperature
- -40 Degrees F
- Screw Type
- Phil-Slot
- Housing Material
- Thermoplastic
- Cover Included
- No
- Center Spacing
- 7/16 in
- Termination Style
- Screw
- Standards
- CSA LR15364, UL Recognized E82048
- Housing Color
- Black
- Number of Poles
- 12
- Current
- 25 A
- Termination Screw Finish
- Nickel Plated
- Termination Screw Material
- Steel
- UL 94 Flammability Rating
- V-0
- Number of Rows
- 2
- Terminal Material
- Steel
- Torque
- 9 in-lb
Description
Barrier Terminal Strip, Center Spacing 7/16 in, Current 25 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 12 AWG, Maximum Voltage 300 V, Number of Poles 12, Number of Rows 2, Overall Height 0.56 in, Overall Length 6 in, Overall Width 5.68 in, Cover Included No, Housing Color Black, Housing Material Thermoplastic, Maximum Operating Temperature 260 Degrees F, Minimum Operating Temperature -40 Degrees F, Screw Type Phil-Slot, Standards CSA LR15364, UL Recognized E82048
