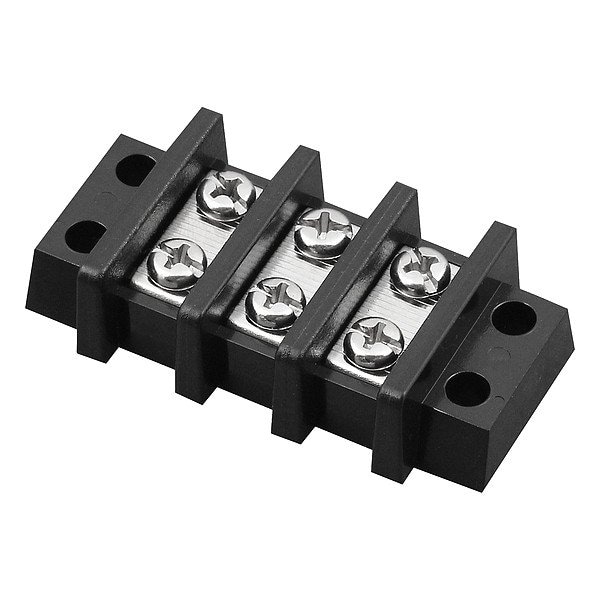

BarrierTerminalStrip, 30A, 10AWGMax, 600V
Mfr # 89-203
Zoro # G422414574
product price:Â
$
13.25
/ea
Sold in multiples of 10 for $132.50
Key Features
Current
30 A
Termination Screw Finish
Nickel Plated
UL 94 Flammability Rating
V-0
For Maximum Wire Size
10 AWG
Wire Rope Length
2.69 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 89-203
- Zoro #
- G422414574
- UPC #
- 783250892037
- Country of Origin
- China
- Current
- 30 A
- Termination Screw Finish
- Nickel Plated
- UL 94 Flammability Rating
- V-0
- Termination Style
- Screw
- Housing Material
- Thermoplastic
- Terminal Material
- Steel
- Minimum Operating Temperature
- -40 Degrees F
- Housing Color
- Black
- Screw Type
- Phil-Slot
- Maximum Voltage
- 600 V
- Center Spacing
- 9/16 in
- Standards
- CSA LR15364, UL Recognized E82048
- Number of Rows
- 2
- Item
- Barrier Terminal Strip
- Cover Included
- No
- Torque
- 16 in-lb
- Number of Poles
- 3
- Termination Screw Material
- Steel
Description
Barrier Terminal Strip, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Number of Poles 3, Number of Rows 2, Overall Height 0.63 in, Overall Length 2.69 in, Overall Width 2.25 in, Cover Included No, Housing Color Black, Housing Material Thermoplastic, Maximum Operating Temperature 260 Degrees F, Minimum Operating Temperature -40 Degrees F, Screw Type Phil-Slot, Standards CSA LR15364, UL Recognized E82048
