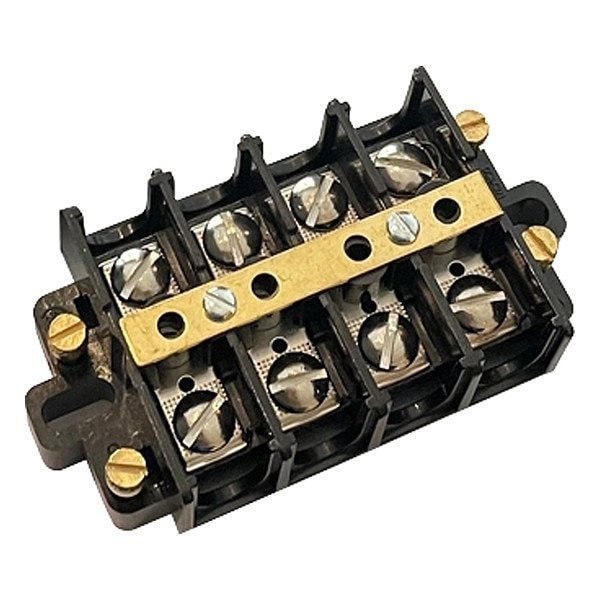

BarrierTerminalStrip, 60A, 6AWGMax, 600V
- Mfr # 89-505
- Zoro # G822413511
product price:Â
$
45.69
/ea
Sold in multiples of 10 for $456.90
Key Features
Termination Screw Material
Brass
Screw Type
Phil-Slot
Termination Style
Screw
For Maximum Wire Size
6 AWG
Terminal Material
Brass
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 89-505
- Zoro #
- G822413511
- UPC #
- 783250895052
- Country of Origin
- Mexico
- Termination Screw Material
- Brass
- Screw Type
- Phil-Slot
- Termination Style
- Screw
- Terminal Material
- Brass
- Termination Screw Finish
- Nickel Plated
- Number of Poles
- 4
- Torque
- 20 in-lb
- Standards
- CSA LR15364, UL Recognized E82048
- Maximum Voltage
- 600 V
- UL 94 Flammability Rating
- V-0
- Item
- Barrier Terminal Strip
- Housing Color
- Black
- Housing Material
- Thermoplastic
- Current
- 60 A
- Center Spacing
- 5/8 in
- Minimum Operating Temperature
- -40 Degrees F
- Cover Included
- No
- Number of Rows
- 2
Description
Barrier Terminal Strip, Center Spacing 5/8 in, Current 60 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 6 AWG, Maximum Voltage 600 V, Number of Poles 4, Number of Rows 2, Overall Height 1.25 in, Overall Length 3.75 in, Overall Width 2.87 in, Cover Included No, Housing Color Black, Housing Material Thermoplastic, Maximum Operating Temperature 260 Degrees F, Minimum Operating Temperature -40 Degrees F, Screw Type Phil-Slot, Standards CSA LR15364, UL Recognized E82048
