Shop IDEAL

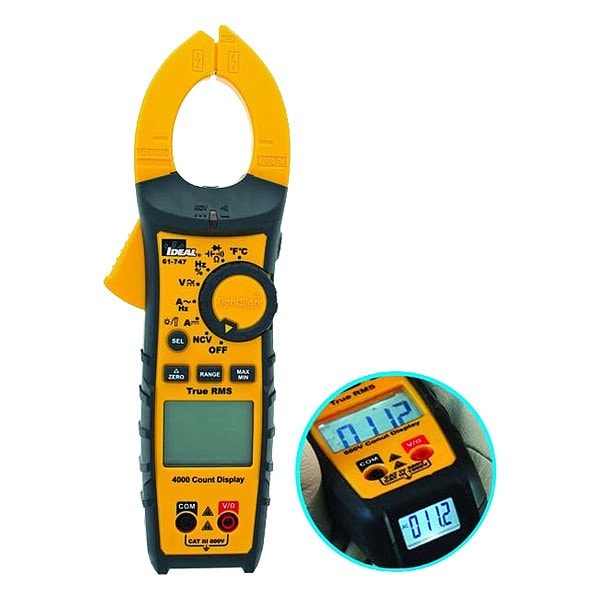

DigitalClampMeter, TRMS, 400A, 600VAC

  • Mfr # 61-747

  • Zoro # G822768581

product price:
$
105.60
/ea
Sold in multiples of 4 for $422.40
Free Shipping & Returns

Key Features

Manufacturers Warranty Length
2 yr Limited
Maximum Capacitance Measurement
4 mF
Multiple On-Screen Displays
No
Inrush Current Measurable
No
Thermometer Type
Type K Thermocouple
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
61-747
Zoro #
G822768581
UPC #
783250810260
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr Limited
Overall Height
1.8 in
Battery Size
AAA
Overall Width
2.8 in

Details

Maximum Capacitance Measurement
4 mF
Multiple On-Screen Displays
No
Inrush Current Measurable
No
Thermometer Type
Type K Thermocouple
Resistance Measurement Accuracy
+/-1.5%
Minimum DC Voltage Measurement
4 V
DC Current Measurement Resolution
0.01 A
Frequency Measurement Resolution
0.01 Hz
Current Leakage Testing
No
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Frequency Measurement Accuracy
+/-0.1%
Current Units
A
Jaw Opening
1.4 in
Thermal Imaging
No
Maximum AC Current Measurement
400 A
Peak Hold
No
Voltage Units
V
Maximum DC Current Measurement
400 A
Minimum Resistance Measurement
400 ohm
Software Included
No
Basic DC Current Accuracy
+/-2%
Data Hold
Yes
AC Current Measurement Resolution
0.01 A
DC Voltage Measurement Resolution
0.001 V
AC Response Calculation
TRMS
Minimum Capacitance Measurement
400 nF
Capacitance Measurement Accuracy
+/-4%
Includes Auto Sensing
No Auto Sensing Included
Maximum Storage Temperature
140 Degrees F
AC Voltage Measurement Resolution
0.001 V
Audible Continuity
Yes
Auto Ranging
Yes
Jaw Detachability
Fixed
Basic DC Voltage Accuracy
+/-1%
Special Features
Compatible with Magnetic Strap Mount
Maximum Resistance Measurement
40 megaohm
Maximum AC Voltage Measurement
600 V
Instrument Counts
4,000
Parameters Measured
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Input Impedance, Resistance, Temperature
Includes
Batteries, Type K Thermocouple Probe, Soft Carrying Case, Test Leads
Battery Access
Yes
Minimum DC Current Measurement
40 A
Temperature Types Measured
Temperature Degrees C, Temperature Degrees F
IP Rating
Not Rated
Minimum AC Current Measurement
40 A
Maximum Frequency Measurement
999.9 Hz
Diode Test
Yes
Auto Power Off
Yes
Item
Digital Clamp Meter
Jaw Style
Clamp
Memory
Min/Max
Removable Screen
No
Resistance Measurement Resolution
0.1 ohm
Minimum Storage Temperature
14 Degrees F
Bar Graph Included
No
Display Type
LCD
Minimum AC Voltage Measurement
4 V
Capacitance Measurement Resolution
0.1 nF
Battery Voltage
1.5 V
Batteries Included
Yes
Maximum DC Voltage Measurement
600 V
Standards
cULus
Minimum Frequency Measurement
99.99 Hz
Non-Contact Voltage Detector
Yes
Minimum Operating Temperature
104 Degrees F
Basic AC Current Accuracy
+/-2%
Time of Day Clock
No
Basic AC Voltage Accuracy
+/-1%

Description

Digital Clamp Meter, Audible Continuity Yes, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 400 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating Not Rated, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Input Impedance, Resistance, Temperature, Intrinsically Safe Not Applicable, Data Logging Not Applicable

Restrictions

Hazardous material
