Ideal

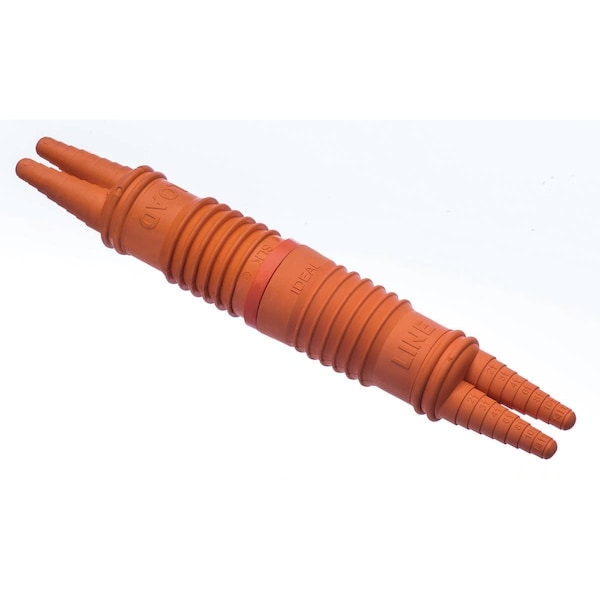

St Lght Dscnnct, SetScrew, Y-Tap, Fused

product price: $61.39
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Style Y-Tap
  • Insulation Polypropylene, TPE
  • Breakaway/Non-Breakaway Breakaway
  • Color Orange
  • Primary Wire Range 2 to 14 AWG
See all product information

Product Information

Dimensions

Overall Length 8 1/2 in
For Line Side Wire Size 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG
For Minimum Line Wire Size 14 AWG
For Load Side Wire Size 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG
For Minimum Load Wire Size 14 AWG
For Maximum Line Wire Size 2 AWG
For Maximum Load Wire Size 2 AWG

Details

Item Street Light Disconnect
Style Y-Tap
Insulation Polypropylene, TPE
Breakaway/Non-Breakaway Breakaway
Color Orange
Primary Wire Range 2 to 14 AWG
Insulation Color Orange
Connection Type Set Screw
Wire Range 2-14 AWG (Cu & Al rated)
Design Fused
Secondary Wire Range 2 to 14 AWG
Secondary Connections/Pole 2
Max. Temp. 105 Degrees C
Max. Voltage 600V AC
Standards UL 486D, UL Listed
Connection Material Tin-Plated Brass
Primary Connections/Pole 2
Contact Material Brass
Fused Yes
Compatible with Product Type Street Lights
Load Outputs 2
Primary Connection Poles 2
Compatible with Series SLK
Disconnect Style Breakaway Disconnect
UL 94 Flammability Rating V-2
Contact Finish Tin
Current 30 A
Maximum Operating Temperature 221 Degrees F
Fuse Type Fused
UL Standards UL 486D
For Conductor Material Aluminum, Copper
Insulation Material Polypropylene, TPE
Maximum Voltage 600 V
Line Inputs 2
Termination Style Set Screw
Secondary Connection Poles 2
Disconnect Breakaway Breakaway
Ratings 30A, 600V, 105°C
SLK Type Set-Screw
Maximum Rated Voltage 600V
Number of Wires (Load Side) 2 Wire
Number of Wires (Line Side) 2 Wire
SLK Variation Standard
Maximum Wire Gauge 2 AWG
Street Light Kit Type 2 Wire Line / 2 Wires Load Fused
Minimum Wire Gauge 14 AWG

Description

Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Y-Tap, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 14 AWG, For Maximum Line Wire Size 2 AWG, Load Outputs 2, For Minimum Load Wire Size 14 AWG, For Maximum Load Wire Size 2 AWG, Fused Yes, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 2, Secondary Connection Poles 2, Termination Style Set Screw, Color Orange
