This item is Discontinued.

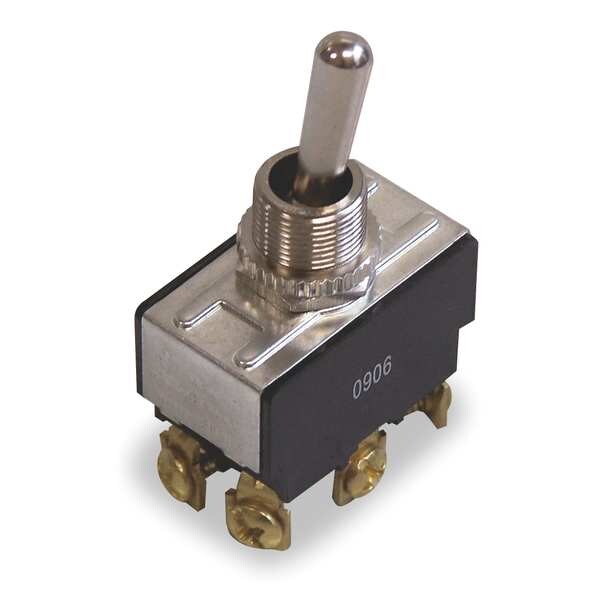

Ideal Toggle Switch, DPDT, 10A @ 250V, Screw, Actuator Style: Bat 774015

Toggle Switch, DPDT, 10A @ 250V, Screw, Actuator Style: Bat (Discontinued)

  • Mfr # 774015
  • Zoro # G1247172
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
774015
Zoro #
G1247172
UPC #
783250573578
Country of Origin
China

Dimensions

Actuator Length
0.75 in
Stem Length
0.5 in
Stem Dia. and Thread Size
15/32-32 NS-2A
Overall Depth
1.3 in
Stem Thread Size
15/32-32 NS-2A
Overall Height
0.8 in
Mounting Hole Diameter
0.5 in
Overall Width
0.76 in

Details

Item
Toggle Switch
HP
1 1/2 hp
Actuator Color
Silver
Recommended Use
Power Tool and Motor Control Switch Applications
Standards
CSA, UL Listed
Stem Color
Silver
Contact Form
DPDT
Number of Connections
6
Special Features
Factory Tested 100,00 Cycles to 21A @ 14.8V DC
Terminals
Screw
Mounting Hole
0.50 in dia
Operating Temp. Range
32 Degrees to 185 Degrees F
Switch Function
On/On
Actuator Style
Bat
AC Contact Rating
10 A @ 277 V, 20 A @ 125 V
DC Contact Rating
21 A @ 14.8 V
Product Type
Toggle Switch
Dielectric Strength
1500V
Operating Temperature
32°F to 185°F (0°C to 85°C)
Mechanical Life
100,000 cycles
DC Rating
Factory tested 100,000 cycles to 21 Amp 14.8 VDC
Switch Function Configuration
On/On
Actuator Material
Metal
Terminal Connection Type
Screw Terminals
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
185 Degrees F
Number of Positions
2
Metal Actuator Finish
Nickel
Horsepower
1 1/2 hp
Number of Poles
2

Description

Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/On, AC Contact Rating 10 A @ 277 V, 20 A @ 125 V, HP 1 1/2 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 21 A @ 14.8 V, Actuator Style Bat, Actuator Length 0.75 in, Stem Length 0.5 in, Stem Dia. and Thread Size 15/32-32 NS-2A, Operating Temp. Range 32 Degrees to 185 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Factory Tested 100,00 Cycles to 21A @ 14.8V DC
