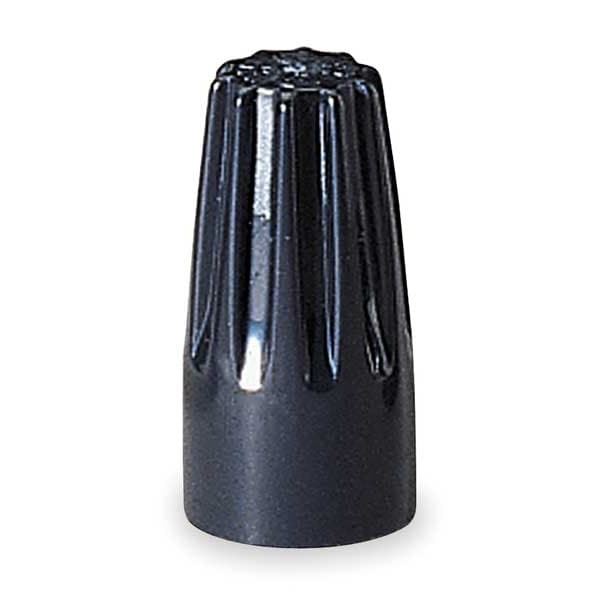

Twist-On Wire Connector, 14 AWG Max, Black, Polybutylene Terephthalate Insulation, 600 V, 100 PK
- Mfr # 30-3629
- Zoro # G1574955
product price:Â
$
14.99
/pk of 100, $0.15/ea
Key Features
Type
Twist-On
Color
Black
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Insulation Material
Polybutylene Terephthalate
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30-3629
- Zoro #
- G1574955
- UPC #
- 783250455416
- Country of Origin
- United States
- Item
- Wire Connector
- Type
- Twist-On
- Color
- Black
- Insulation Material
- Polybutylene Terephthalate
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (1) 18 AWG with (1) 20 AWG
- Maximum Wire Combination
- (2) 14 AWG
- Maximum Operating Temperature
- 302 Degrees F
- UL 94 Flammability Rating
- V-2
- Wire Connector Style
- Standard
- Standards
- CSA Certified, UL Listed
- Series
- 73B
- Application
- High Temperature
- Maximum Conductors
- 5
- Special Features
- Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers
- Compatible with Product Type
- High Temperature
- For Conductor Material
- Copper
- Material
- Steel
- Twist-On Style
- Non-Wing
- Termination Style
- Twist-On
- Contact Material
- Steel
- Contact Finish
- Zinc
- Connector Type
- 73B
- Wire Color
- Black
Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 22 AWG
- Width
- 0.44 in
- Height
- 0.86 in
- Overall Width
- 0.44 in
- For Minimum Wire Size - Solid
- 22 AWG
- Minimum Single Wire Size
- 18 AWG
- Maximum Single Wire Size
- 14 AWG
- Overall Height
- 0.86 in
Description
Twist-On Wire Connectors, Color Black, For Conductor Material Copper, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-0, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Compatible with Product Type High Temperature, Fill Material Not Applicable
