  11. Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 300 PK

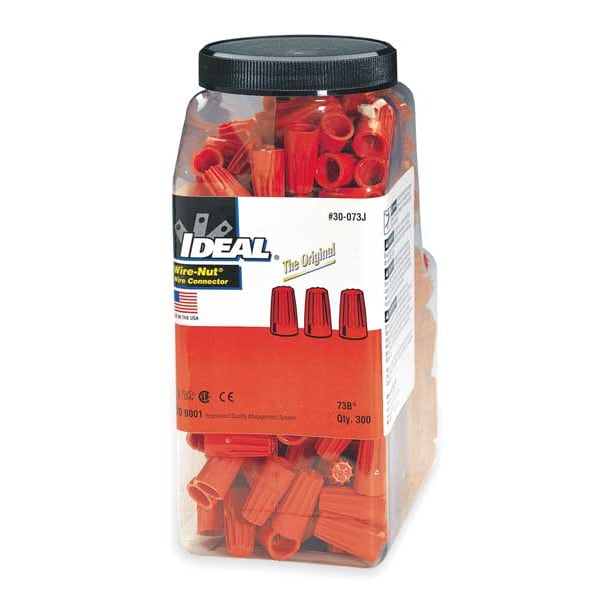

Ideal Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 300 PK 30-073J - main

Twist-On Wire Connector, 14 AWG Max, Orange, Polypropylene Insulation, 600 V, 300 PK

  • Mfr # 30-073J

  • Zoro # G0892071

product price: $36.09
/pk 300, $0.12/ea

Key Features

Type
Twist-On
Color
Orange
Minimum Wire Size
22 AWG
Insulation Material
Polypropylene
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-073J
Zoro #
G0892071
UPC #
783250216789
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Height
0.86 in
Width
0.44 in
Outside Diameter
0.44 in
Overall Width
0.44 in
Strip Length
3/8 in
For Minimum Wire Size - Solid
22 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Orange
Insulation Material
Polypropylene
Maximum Voltage
600 V
Minimum Wire Combination
(1) 18 AWG with (1) 20 AWG
Maximum Wire Combination
(2) 14 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Series
73B
Application
General Purpose
Standards
CSA C22.2 No. 188, UL 486C
Finish
Zinc Plated
Material
Steel
For Conductor Material
Copper
Special Features
Approved for Bonding and Grounding Applications, Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip that Will Last, Positive Grip Shell that is Perfect to Twist-On with Fingers, Rated for Use in Air Handling Spaces, Refined Range to Handle All Common Applications
Maximum Conductors
4
Additional Information
Accepts 1 #18 w/1 #20 to 4 #16 AWG wire combinations, Rated for 600 Volt maximum, Fixed, square-wire spring, No pre-twisting required, Reusable, Shell rated for 105° C, Flame-retardant shell
Twist-On Style
Non-Wing
Compatible with Product Type
Light Fixtures, Signs
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA C22.2 No. 188, UL 486C, Wire Connector Style Standard, Compatible with Product Type Light Fixtures, Signs, Fill Material Not Applicable
