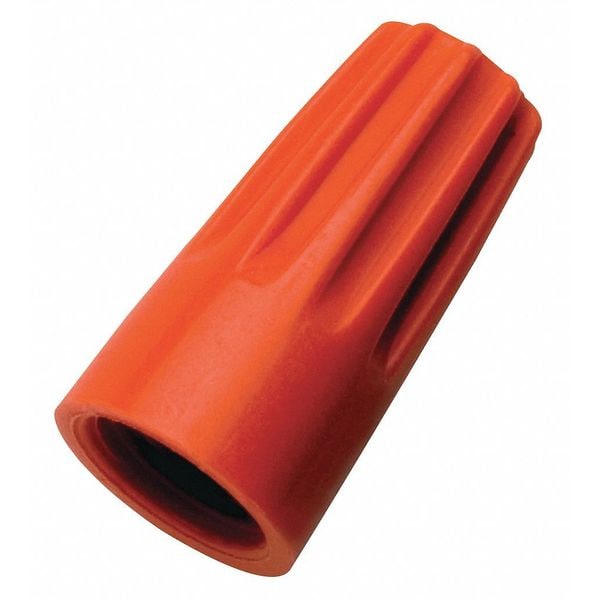

Twist On Wire Connector, 22 AWG to 14 AWG, 600 V, Standard Style, Orange, 100 PK
- Mfr # 30-073
- Zoro # G1526305
product price:Â
$
8.39
/pk of 100, $0.08/ea
Key Features
Type
Twist-On
Color
Orange
Maximum Wire Size
14 AWG
Minimum Wire Size
22 AWG
Insulation Material
Polypropylene
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 30-073
- Zoro #
- G1526305
- UPC #
- 783250300730
- Country of Origin
- United States
- Item
- Wire Connector
- Type
- Twist-On
- Color
- Orange
- Insulation Material
- Polypropylene
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (1) 18 AWG with (1) 20 AWG
- Maximum Wire Combination
- (2) 14 AWG
- Maximum Operating Temperature
- 221 Degrees F
- UL 94 Flammability Rating
- V-2
- RoHS Compliant
- Yes
- Wire Connector Style
- Standard
- Standards
- CSA Certified, UL Listed
- Application
- General Purpose
- Series
- 73B
- Special Features
- Approved for Bonding and Grounding Applications, Excellent for Fine Stranded Wire Applications, Rated for Use in Air Handling Spaces, Refined Range to Handle All Common Applications, Tough, Flame-Retardant
- For Conductor Material
- Copper
- Maximum Conductors
- 5
- Material
- Steel
- Termination Style
- Twist-On
- Connector Type
- 73B
- Contact Material
- Steel
- Contact Finish
- Zinc
- Wire Color
- Orange
Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 22 AWG
- Width
- 0.44 in
- Height
- 0.86 in
- Strip Length
- 3/8 in
- Overall Width
- 0.44 in
- For Minimum Wire Size - Solid
- 22 AWG
- Overall Height
- 0.86 in
- Maximum Single Wire Size
- 14 AWG
- Minimum Single Wire Size
- 18 AWG
Description
Twist-On Wire Connectors, Color Orange, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (1) 18 AWG with (1) 20 AWG, Maximum Wire Combination (2) 14 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 14 AWG
