  11. Twist-On Wire Connector, 6 AWG Max, Blue, Thermoplastic Polyester Insulation, 600 V, 25 PK

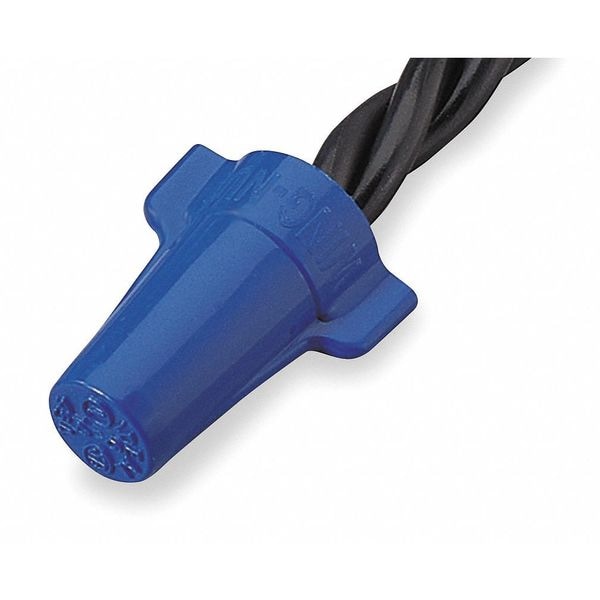

Ideal Twist-On Wire Connector, 6 AWG Max, Blue, Thermoplastic Polyester Insulation, 600 V, 25 PK 30-454 - main

Twist-On Wire Connector, 6 AWG Max, Blue, Thermoplastic Polyester Insulation, 600 V, 25 PK

  • Mfr # 30-454

  • Zoro # G1486685

product price: $11.49
/pk 25, $0.46/ea

Key Features

Type
Twist-On
Minimum Wire Size
14 AWG
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(3) 12 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-454
Zoro #
G1486685
UPC #
783250304547
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Minimum Wire Size
14 AWG
Height
1.5 in
Width
1.19 in
Overall Width
1.2 in
Outside Diameter
0.78 in
Strip Length
7/8 in
For Minimum Wire Size - Solid
14 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Blue
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(3) 12 AWG
Maximum Wire Combination
(1) 6 AWG with (2) 8 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CSA Certified, UL Listed
Series
454
Application
General Purpose
Maximum Conductors
6
Special Features
Copolymer Shell Expands for Smooth, Progressive Tightening Providing Dependable Connections, High-Leverage, Contoured Wing Design Provides Superior Torque on Every Twist, Removable for Repeat Usage, Wide Range, Live-Action Spring Handles Small Combinations and Expands to Accommodate Large Combinations
For Conductor Material
Copper
Material
Steel
Twist-On Style
Wing
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Blue, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 12 AWG, Maximum Wire Combination (1) 6 AWG with (2) 8 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 6 AWG
