  11. Twist-On Wire Connector, 6 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 150 PK

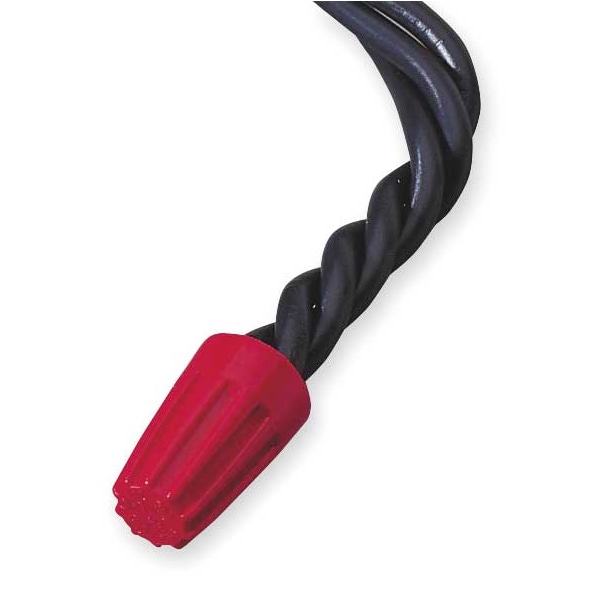

Ideal Twist-On Wire Connector, 6 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 150 PK 30-076J - main

Twist-On Wire Connector, 6 AWG Max, Red, Thermoplastic Polyester Insulation, 600 V, 150 PK

  • Mfr # 30-076J

  • Zoro # G2475261

product price: $24.69
/pk 150, $0.16/ea

Key Features

Type
Twist-On
Minimum Wire Size
18 AWG
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 14 AWG
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-076J
Zoro #
G2475261
UPC #
783250348282
Country of Origin
United States

Dimensions

Maximum Wire Size
6 AWG
Minimum Wire Size
18 AWG
Height
1.06 in
Width
0.66 in
Strip Length
1/2 in
Overall Width
0.59 in
For Minimum Wire Size - Solid
18 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Red
Insulation Material
Thermoplastic Polyester
Maximum Voltage
600 V
Minimum Wire Combination
(2) 14 AWG
Maximum Wire Combination
(4) 12 AWG
Maximum Operating Temperature
221 Degrees F
UL 94 Flammability Rating
V-2
RoHS Compliant
Yes
Standards
CSA Certified, UL Listed
Wire Connector Style
Standard
Series
76B
Application
General Purpose
Maximum Conductors
6
For Conductor Material
Copper
Special Features
Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications
Material
Steel
Twist-On Style
Non-Wing
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 14 AWG, Maximum Wire Combination (4) 12 AWG, Contact Finish Zinc, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Fill Material Not Applicable, Insulation Material Polypropylene, Maximum Single Wire Size 6 AWG
