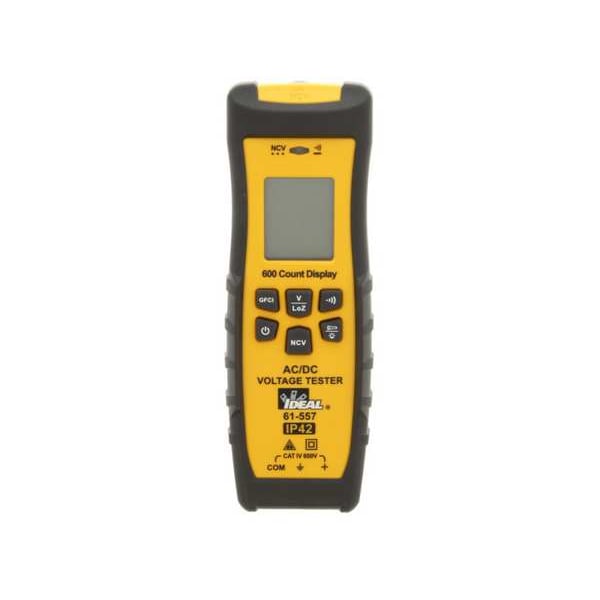

Ideal Voltage Tester, CAT IV 600V, LCD 61-557 - main

Voltage Tester, CAT IV 600V, LCD

  • Mfr # 61-557

  • Zoro # G204410541

product price: $47.69
/ea

Key Features

Battery Type
AAA
Safety Rating
CAT IV 600V
Flashlight
Yes
AC Voltage Range
0 to 600
Audible Continuity
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
61-557
Zoro #
G204410541
UPC #
783250810666
Country of Origin
China

Dimensions

Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr
Battery Size
AAA
Cable Length
3.83 ft

Details

Item
Voltage Tester
Battery Type
AAA
Safety Rating
CAT IV 600V
Flashlight
Yes
AC Voltage Range
0 to 600
Audible Continuity
Yes
Basic DC Accuracy
+/-(3% + 2 Digits)
Low Impedance
Yes
Non-Contact Voltage Detector
Yes
Display
Backlit LCD with Discrete LED
Auto Power Off
Yes
Calibration Frequency
50 to 60 Hz
Standards
UL
Auto Ranging
Yes
Includes
Industrial Grip Test Leads, Magnetic Hanging Strap
DC Voltage Range
0 to 600
DC Polarity
Yes
Special Features
Auto Power Off Function, Capable of Sustaining a Drop From 6.5 Ft (2 M), Low Battery Indication, Reduce the Possibility of False Readings, Self-Test At Each Power On, Two Position Dual Probe Holder
Resistance
0 to 10K ohm
Features
Industrial Grip, Probe Holders and Hanging Strap Clip Increase Productivity and Durability, Integral Probe Holders Allow Insertion of Probes Directly into Outlet
Power Source
Battery
Display Screen Type
LCD
Minimum Resistance Measured
0 kiloohm
Maximum AC Voltage Measured
600 V
Test Connection Type
Probe Tip
Built-In Flashlight
Yes
Non-Contact
Yes
DC Voltage Accuracy
+/-3.00% +2 digits
Testing Functions
AC Voltage, Continuity, AC Current, DC Polarity, DC Voltage, GFCI
Continuity Confirmation
0 to 10 kiloohm
Maximum DC Voltage Measured
600 V
CAT Safety Rating
CAT IV 600V
Includes Batteries
Yes
Minimum AC Voltage Measured
0 V
Tester Type
Voltage and Continuity Tester
Minimum DC Voltage Measured
6 V
Number of Batteries Required
3
Maximum Resistance Measured
10 kiloohm
Alert Type
Digital Display, Sound
IP Rating
IP42
Display Type
Digital

Description

Voltage Tester, Alert Type Digital Display, Sound, Built-In Flashlight Yes, CAT Safety Rating CAT IV 600V, Cable Length 3.83 ft, Display Type Digital, Includes Industrial Grip Test Leads, Magnetic Hanging Strap, Maximum AC Voltage Measured 600 V, Maximum DC Voltage Measured 600 V, Non-Contact Yes, Test Connection Type Probe Tip, Testing Functions AC Voltage, Continuity, AC Current, DC Polarity, DC Voltage, GFCI
