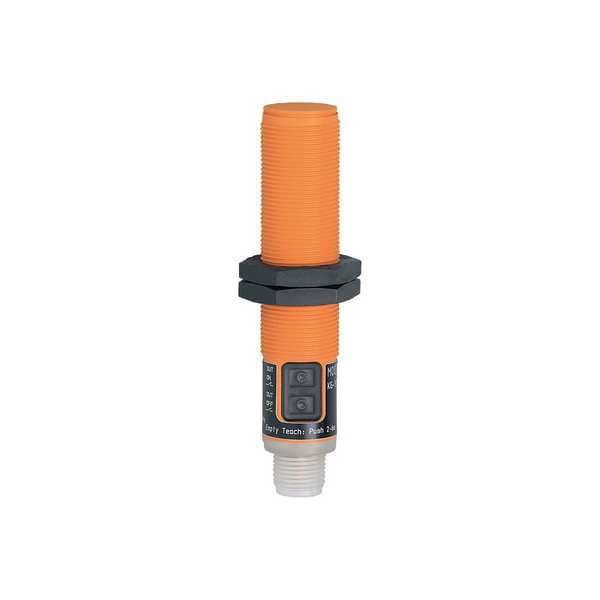

Capacitive, Cylindrical Proximity Sensor, 18 mm Dia., PBT, M12, 3 Wires, Unshielded

  • Mfr # KG5065

  • Zoro # G6978377

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Style
Capacitive, Cylindrical
Overall Diameter
18 mm
Proximity Sensing Method
Capacitive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 36V DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
KG5065
Zoro #
G6978377
UPC #
-
Country of Origin
Italy

Dimensions

Overall Diameter
18 mm
Length
87 mm
Dimensions [mm]
M18 x 1 / L = 87
Overall Height
87 mm

Details

Item
Proximity Sensor
Style
Capacitive, Cylindrical
Proximity Sensing Method
Capacitive
Body Material
PBT
Proximity Sensor Power Requirement
10 to 36V DC
Electrical Connection
M12
Output Circuit Type
NPN/PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
12 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-36V DC
Output Circuit Contact Form
NO/NC
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
10 Hz
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
IP Rating
IP65, IP67
Operating Temp. Range
-13 Degrees to 176 Degrees F
Max. Current Load
200mA
Includes
(2) Lock Nuts
SIO mode
yes
Switching frequency DC [Hz]
10
Short-circuit proof
yes
Sensing range [mm]
12
Protection
IP 65; IP 67
Protection class
II
Profiles
Smart Sensor
SDCI standard
IEC 61131-9 CDV
Materials
housing: PBT; pushbuttons: TPE-U; LED window: PC
Items supplied
lock nuts: 2
Reverse polarity protection
yes
Permanent current rating of switching output DC [mA]
200
Current consumption [mA]
< 20
Transmission type
COM1 (4,8 kBaud)
MTTF [years]
566
Vibration resistance
EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Teach function
yes
Hysteresis [% of Sr]
1...15
Min. process cycle time [ms]
101
Measuring principle
capacitive
Electronic lock
yes
Switch point drift [% of Sr]
-20...20
Shock resistance
EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z)
IO-Link revision
1.1
Electrical design
PNP/NPN; (automatic load detection PNP/NPN:; when using a resistive load < 20 kΩ)
Display
switching status 1 x LED, yellow
Max. voltage drop switching output DC [V]
2.5
Thread designation
M18 x 1
Communication interface
IO-Link
Mounting
non-flush mountable
Operating voltage [V]
10...36 DC
Housing
threaded type
Ambient temperature [°C]
-25...80
EMC
EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
Overload protection
yes
Sensing Method
Capacitive
Number of Pins
4
Features
Empty/Full State Pushbutton
Output Circuit Voltage - Maximum
2.5 V DC
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Output Circuit Current - Maximum
200 mA
Operating Temperature - Maximum
176 Degrees F
Switching Frequency
10 Hz
Electrical Installation Type
Direct Connector

Description

Capacitive Cylindrical Proximity Sensor, Capacitive, 18 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP/NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO/NC, IP Rating IP65, IP67, Case Material PBT, Length 87 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 200mA
