  11. Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Unshielded

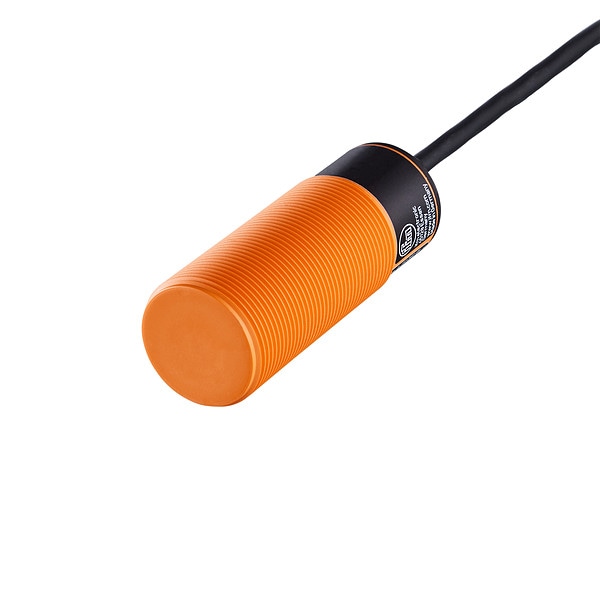

Ifm Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Unshielded KI5207 - main

Capacitive, Cylindrical Proximity Sensor, 30 mm Dia., PBT, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # KI5207

  • Zoro # G6449012

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
10 to 36V DC
Length
99 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
40 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KI5207
Zoro #
G6449012
UPC #
094720838302
Country of Origin
Germany

Dimensions

Length
99 mm
Dimensions [mm]
M30 x 1.5 / L = 81
Overall Diameter
30 mm
Overall Height
81 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Proximity Sensing Method
Capacitive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
40 Hz
Max. Current Load
250mA
Standards
EN 60947-5-2
Includes
(2) Lock Nuts, Screwdriver
Operating Temp. Range
-13 Degrees to 158 Degrees F
Description/Special Features
Overload Protection, Red LED Output Indication
IP Rating
IP65
Electrical Connection
Bare Wire
Factory setting sensing range [mm]
15
MTTF [years]
692
Display
switching status 1 x LED, red
Permanent current rating of switching output DC [mA]
250
Short-circuit proof
yes
Switch point drift [% of Sr]
-15...15
Correction factor
glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2
Real sensing range Sr [mm]
15± 10 %
Electrical design
PNP
Increased immunity
yes; (increased immunity to conducted radio frequency interference)
Thread designation
M30 x 1.5
Housing
threaded type
Sensing range [mm]
3...15
Protection
IP 65
Reverse polarity protection
yes
Current consumption [mA]
13; (24 V)
Mounting
non-flush mountable
Max. voltage drop switching output DC [V]
2.5
EMC
EN 60947-5-2
Hysteresis [% of Sr]
1...15
Overload protection
yes
Switching frequency DC [Hz]
40
Connection
Cable: 2 m, PVC; 3 x 0.5 mm²
Sensing range adjustable
yes
Ambient temperature [°C]
-25...70
Materials
PBT
Operating voltage [V]
10...36 DC
Operating distance [mm]
0...12.1
Protection class
II
Items supplied
lock nuts: 2 screwdriver: 1
Ambient temperature [°C]
-25...70
Output Circuit Type
PNP
Style
Capacitive, Cylindrical
Output Circuit Voltage - Maximum
2.5 V DC
Sensing Face Shielding
Unshielded
Output Circuit Current - Maximum
250 mA
Includes Indicator Lights
Indicator Lights Included
Features
Potentiometer
Electrical Installation Type
Prewired Cable
Sensing Distance - Minimum
3 mm
Body Material
PBT
Output Circuit Contact Form
NO/NC
Output Circuit Number of Wires
3
AC Voltage Rating
Not Rated
Switching Frequency
40 Hz
Sensing Distance - Maximum
15 mm
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
10-36V DC
Operating Temperature - Maximum
158 Degrees F

Description

Capacitive Cylindrical Proximity Sensor, Capacitive, 30 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 40 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO/NC, IP Rating IP65, Case Material PBT, Length 99 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250mA
