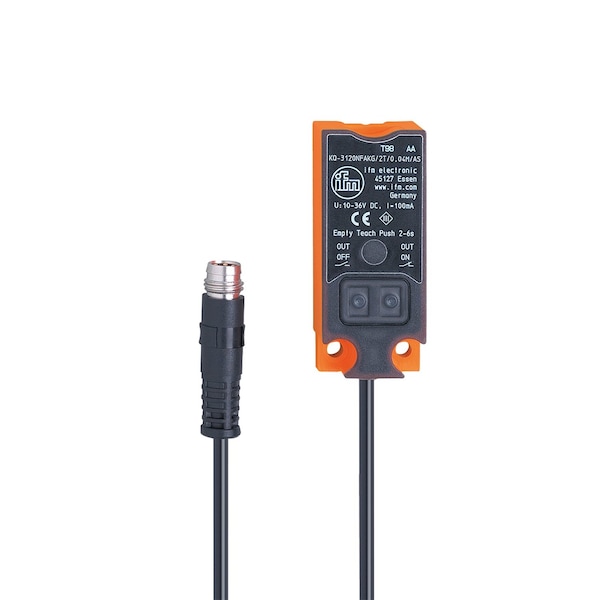

Capacitive Proximity Sensor, 48mm H
Mfr # KQ6004
Zoro # G622808708
product price:Â
$
145.99
/ea
Free Shipping & Returns
Key Features
Output Circuit Current - Maximum
100 mA
Sensing Distance - Maximum
12 mm
Output Circuit Contact Form
NO/NC
DC Voltage Rating
10 to 30V DC
Transmission Type
COM1 (4.8 kBaud)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- KQ6004
- Zoro #
- G622808708
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Width
- 20 mm
- Overall Depth
- 14 mm
- Cable Length
- 0.04 m
- Overall Height
- 48 mm
Details
- Output Circuit Current - Maximum
- 100 mA
- Sensing Distance - Maximum
- 12 mm
- Output Circuit Contact Form
- NO/NC
- DC Voltage Rating
- 10 to 30V DC
- Transmission Type
- COM1 (4.8 kBaud)
- Communication Interface
- IO-Link
- IP Rating
- IP65, IP67, IP69K
- Style
- Rectangular
- Item
- Capacitive Proximity Sensor
- Load Current - Maximum
- 100 mA
- Output Circuit Type
- PNP
- Operating Temperature - Maximum
- 80 Degrees C
- Switching Frequency
- 10 Hz
- Standards
- CE, EN 61000, IEC 61131-9, UKCA, UL Listed
- Electrical Connection
- M8
- Output Circuit Voltage - Maximum
- 30 V DC
- Operating Temperature - Minimum
- -25 Degrees C
- Output Circuit Voltage - Minimum
- 10 V DC
- Series
- KQ
- Body Material
- PBT
Description
Capacitive Proximity Sensor, IP Rating IP65, IP67, IP69K, Standards CE, EN 61000, IEC 61131-9, UKCA, UL Listed
