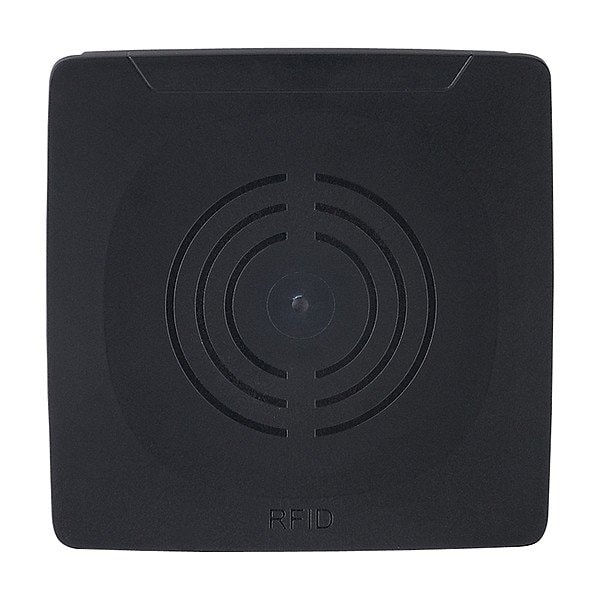

Compact HF RFID device

801.99

/ea

Free Shipping & Returns

Operating Frequency

13.56 MHz

Compatible Frequency Range

Medium Range

Maximum Monitoring Range to Front of Write/Read Head

600 mm

Electrical Connection - Voltage

5-Pin M12 A-Coding

Maximum Monitoring Range to Side of Write/Read Head

850 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: DTE602
Zoro #: G915820745
UPC #: -
Country of Origin: United States
Item: Compact RFID Device
Operating Frequency: 13.56 MHz
Compatible Frequency Range: Medium Range
Maximum Monitoring Range to Front of Write/Read Head: 600 mm
Electrical Connection - Voltage: 5-Pin M12 A-Coding
Maximum Monitoring Range to Side of Write/Read Head: 850 mm
Communication Interface: Ethernet
Minimum Operating Voltage: 19.2 V DC
Current Consumption: 500 mA
Protection Class: III
Maximum Current Load Per Output: 100 mA
Data Transmission Protocol: EtherNet/IP, TCP/IP
Maximum Voltage Drop Switching Output: 2 V DC
Maximum Monitoring Distance to RFID Tag: 150 mm (50 mm Transponder), 180 mm (ISO Card)
Number of Digital Ouputs: 2
Radio Approval for Countries: Australia, Canada, China, EU/RED, India, Japan, Malaysia, Singapore, South Korea, Taiwan, USA, Vietnam
Maximum Operating Voltage: 28.8 V DC
Electrical Connection - Ethernet: (2) 4-Pin M12 D Coding
Electrical Design: Push-Pull
Parameter Setting Protocol: TCP/IP
Frequency Type: High Frequency
Standards: ISO 15693
Product Type: Compact RFID Device
Maximum Operating Temperature: 60 Degrees C
Minimum Operating Temperature: -4 Degrees F
IP Rating: IP 67
