  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded

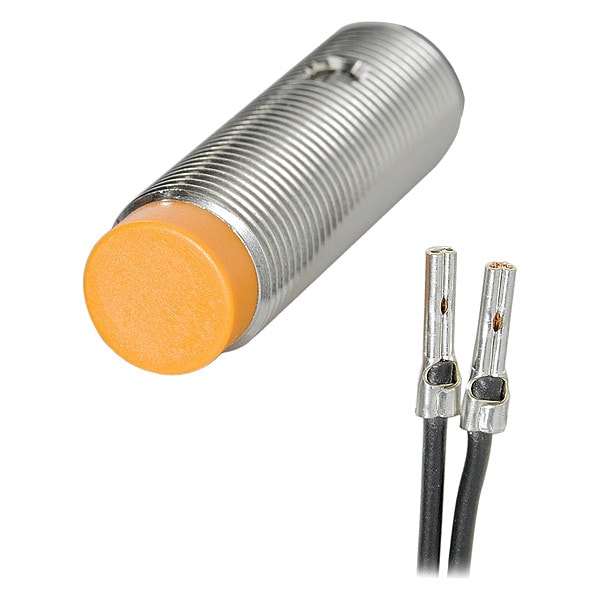

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded IF5719 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Unshielded

  • Mfr # IF5719

  • Zoro # G6980346

product price: $42.45
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Length
40 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
1,500 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IF5719
Zoro #
G6980346
UPC #
-
Country of Origin
Romania

Dimensions

Length
40 mm
Dimensions [mm]
M12 x 1 / L = 40
Cable Length
2 m
Overall Diameter
12 mm
Overall Height
40 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 36V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
1,500 Hz
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 176 Degrees F
Standards
EN 60947-5-2, EN 55011
Description/Special Features
Non-Flush Mountable, Yellow LED Output Indication
Max. Current Load
150mA
IP Rating
IP67
Electrical Connection
Bare Wire
Ambient temperature [°C]
-25...80
MTTF [years]
2680
Reverse polarity protection
yes
Switching frequency DC [Hz]
1500
Operating voltage [V]
10...36 DC
EMC
EN 60947-5-2 EN 55011 class B
Real sensing range Sr [mm]
4± 10 %
Max. leakage current [mA]
0.6
Electrical design
PNP/NPN
Short-circuit protection
yes
Max. voltage drop switching output DC [V]
4.6
Connection
Cable: 2 m, PVC; 2 x 0.34 mm²
Overload protection
yes
Operating distance [mm]
0...3.25
Type of short-circuit protection
pulsed
Housing
threaded type
Switch point drift [% of Sr]
-10...10
Minimum load current [mA]
4
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2
Permanent current rating of switching output DC [mA]
150
Protection class
II
Thread designation
M12 x 1
Mounting
non-flush mountable
Protection
IP 67
Display
switching status 1 x LED, yellow
Sensing range [mm]
4
Materials
brass white bronze coated; sensing face: PC
Items supplied
lock nuts: 2
Hysteresis [% of Sr]
1...15
Ambient temperature [°C]
-25...80
Body Material
Brass
Sensing Distance - Maximum
4 mm
NEMA Enclosure Rating
6
Includes Indicator Lights
Indicator Lights Included
AC Voltage Rating
Not Rated
Output Circuit Number of Wires
2
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical, Inductive
Output Circuit Current - Maximum
150 mA
Output Circuit Voltage - Maximum
4.6 V DC
Body Finish
Bronze Coated
Output Circuit Type
NPN/PNP
Sensing Face Shielding
Unshielded
Switching Frequency
1,500 Hz
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
NO
Operating Temperature - Maximum
176 Degrees F
DC Voltage Rating
10-36V DC

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 36V DC, Unshielded, Proximity Sensor Operating Frequency 1,500 Hz, Proximity Sensor Output Circuit Type 2 Wire PNP/NPN, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6, IP Rating IP67, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 150mA
