  11. Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

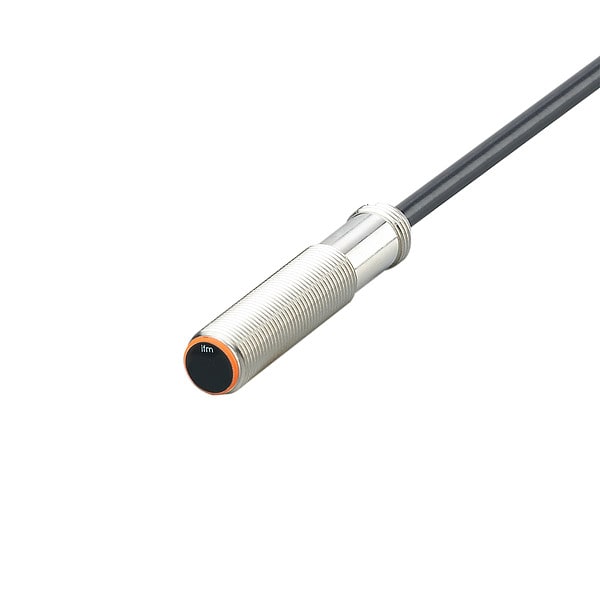

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded IF7104 - main

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Shielded

  • Mfr # IF7104

  • Zoro # G6667561

product price: $39.19
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Length
61 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IF7104
Zoro #
G6667561
UPC #
-
Country of Origin
Germany

Dimensions

Length
61 mm
Dimensions [mm]
M12 x 1 / L = 60
Overall Height
60 mm
Overall Diameter
12 mm
Cable Length
2 m

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
15 to 30V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
800 Hz
Description/Special Features
Overload And Short-Circuit Protection, Yellow LED Output Indication
Standards
EN 61000-4-2 ESD, EN 55011, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A002
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Max. Current Load
100mA
Electrical Connection
Bare Wire
Embedded software included
yes
Display
switching status 1 x LED, yellow
Permanent current rating of switching output DC [mA]
100
Overload protection
yes
Mounting
flush mountable
MTTF [years]
1710
Materials
housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Operating distance [mm]
0...1.62
Switching frequency DC [Hz]
800
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Protection
IP 67
Short-circuit protection
yes
Hysteresis [% of Sr]
3...15
Tightening torque [Nm]
12
Connection
Cable: 2 m, PUR, Ø 4.0 mm; 3 x 0.34 mm²
Operating voltage [V]
10...30 DC
UL approval
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A002 File number UL E174191
Protection class
III
Items supplied
lock nuts: 2
Real sensing range Sr [mm]
2± 10 %
Thread designation
M12 x 1
Ambient temperature [°C]
-25...75
Reverse polarity protection
yes
Max. voltage drop switching output DC [V]
2.5
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Current consumption [mA]
< 10
Switch point drift [% of Sr]
-10...10
Housing
threaded type
Sensing range [mm]
2
Electrical design
PNP
Ambient temperature [°C]
-25...75
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
Body Finish
Bronze Coated
Sensing Face Shielding
Shielded
Operating Temperature - Minimum
-13 Degrees F
AC Voltage Rating
Not Rated
Output Circuit Current - Maximum
100 mA
Output Circuit Voltage - Maximum
2.5 V DC
Body Material
Brass
Includes Indicator Lights
Indicator Lights Included
Switching Frequency
800 Hz
Sensing Distance - Maximum
2 mm
Electrical Installation Type
Prewired Cable
Operating Temperature - Maximum
167 Degrees F
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Output Circuit Type
PNP

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 15 to 30V DC, Shielded, Proximity Sensor Operating Frequency 800 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP67, Case Material Nickel Plated Brass, Length 61 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
