  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

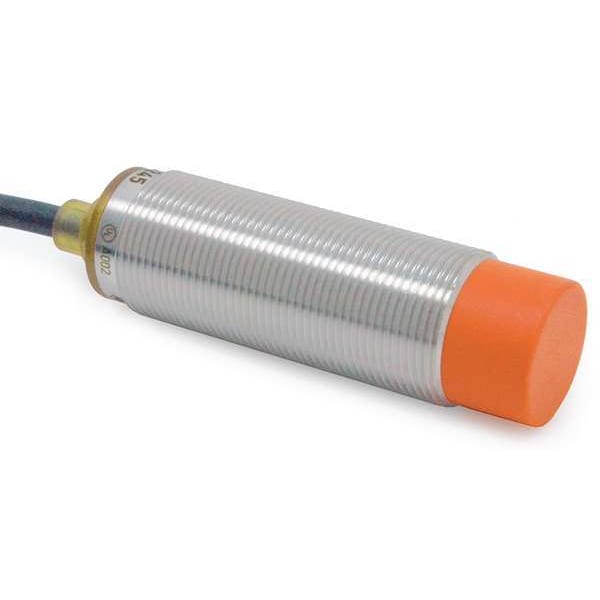

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded IGS247 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # IGS247

  • Zoro # G0528057

product price: $33.19
/ea

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Length
60 mm
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
300 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IGS247
Zoro #
G0528057
UPC #
-
Country of Origin
Germany

Dimensions

Length
60 mm
Dimensions [mm]
M18 x 1 / L = 60
Overall Diameter
18 mm
Cable Length
2 m
Overall Height
60 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
10 to 30V DC
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
300 Hz
Max. Current Load
100mA
IP Rating
IP65, IP66, IP67, IP68, IP69K
Description/Special Features
Overload And Short Protection
Includes
(2) Lock Nuts
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-14 Na, EN 60068-2-27, EN 60068-2-52 Kb, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A002
Operating Temp. Range
-40 Degrees to 185 Degrees F
Electrical Connection
Bare Wire
MTTF [years]
850
Short-circuit protection
yes
Embedded software included
yes
Display
switching status 1 x LED, yellow
Electrical design
NPN
Salt spray test
EN 60068-2-52 Kb severity level 5 (4 test cycles)
Sensing range [mm]
12
Vibration resistance
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
Reverse polarity protection
yes
Application
Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
Thread designation
M18 x 1
Special feature
Increased sensing range
Protection
IP 65; IP 66; IP 67; IP 68; IP 69K
Items supplied
lock nuts: 2
Continuous shock resistance
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
Shock resistance
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Permanent current rating of switching output DC [mA]
100
Current consumption [mA]
< 10
Connection
Cable: 2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²
Ambient temperature [°C]
-40...85
Switching frequency DC [Hz]
300
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Mounting
non-flush mountable
Switch point drift [% of Sr]
-10...10
Operating voltage [V]
10...30 DC
Real sensing range Sr [mm]
12± 10 %
Hysteresis [% of Sr]
3...15
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
Fast temperature change
EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles
Increased sensing range
yes
Max. voltage drop switching output DC [V]
2.5
Operating distance [mm]
0...9.72
Materials
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Protection class
III
Overload protection
yes
Housing
threaded type
UL approval
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A002 File number UL E174191
Ambient temperature [°C]
-40...85
Switching Frequency
300 Hz
Electrical Installation Type
Prewired Cable
Sensing Face Shielding
Unshielded
Features
Safe Detection
AC Voltage Rating
Not Rated
Body Material
Brass
Operating Temperature - Minimum
-40 Degrees F
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
12 mm
DC Voltage Rating
10-30V DC
Output Circuit Type
NPN
Operating Temperature - Maximum
185 Degrees F
Body Finish
Bronze Coated
Output Circuit Number of Wires
3
Style
Cylindrical, Inductive
Output Circuit Voltage - Maximum
2.5 V DC
Output Circuit Contact Form
NO
Output Circuit Current - Maximum
100 mA

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
