  11. Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass/PA/PBT, 1/2 in Connector, 2 Wires, Unshielded

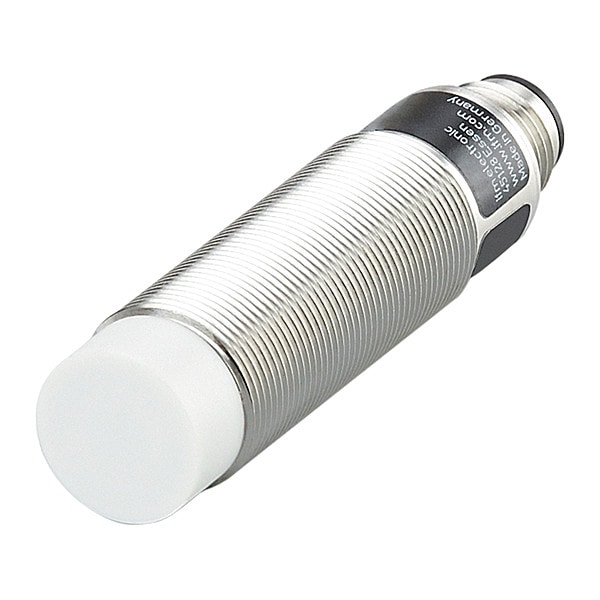

Ifm Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass/PA/PBT, 1/2 in Connector, 2 Wires, Unshielded IG0345 - main

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass/PA/PBT, 1/2 in Connector, 2 Wires, Unshielded

  • Mfr # IG0345

  • Zoro # G6694624

product price: $76.99
/ea
Free Shipping & Returns

Key Features

Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Length
72 mm
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/90 Hz DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IG0345
Zoro #
G6694624
UPC #
094720806820
Country of Origin
Romania

Dimensions

Length
72 mm
Dimensions [mm]
M18 x 1
Overall Diameter
18 mm
Overall Height
72 mm

Details

Item
Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
20 to 250V AC/DC
Proximity Sensor Electrical Connection
3 Pin 1/2-20 UNF Male Connector
Proximity Sensor Operating Frequency
25 Hz AC/90 Hz DC
Description/Special Features
Red LED Output Indication
Standards
EN 60947-5-2, EN 55011, UL E174191, UL Listed
Includes
(2) Lock Nuts
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
250/100mA
IP Rating
IP67
Electrical Connection
1/2 in Connector
Items supplied
lock nuts: 2
Correction factor
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤2 A; fast acting
Reverse polarity protection
no
Operating distance [mm]
0...9.7
Display
switching status 1 x LED, red
Permanent current rating of switching output AC [mA]
250; (350 (...50°C))
MTTF [years]
616
UL approval
Ta 0...40°C Enclosure type Type 1 power supply Hazardous voltage File number UL E174191
Increased sensing range
yes
Max. voltage drop switching output AC [V]
6.5
Special feature
Increased sensing range
EMC
EN 60947-5-2 EN 55011 class B
Switching frequency DC [Hz]
90
Switching frequency AC [Hz]
25
Operating voltage [V]
20...250 AC/DC
Housing
threaded type
Mounting
non-flush mountable
Overload protection
no
Materials
brass white bronze coated; PA; PBT
Protection class
I
Sensing range [mm]
12
Protection
IP 67
Minimum load current [mA]
5
Max. voltage drop switching output DC [V]
6
Thread designation
M18 x 1
Hysteresis [% of Sr]
3...15
Max. leakage current [mA]
1 (250 V AC) / 0.8 (140 V AC) / 0.8 (24 V DC)
Permanent current rating of switching output DC [mA]
100
Ambient temperature [°C]
-25...70
Short-circuit proof
no
Short-time current rating of switching output [mA]
2200; (20 ms / 0,5 Hz)
Ambient temperature [°C]
-25...70
AC Voltage Rating
20-250V AC
Sensing Distance - Maximum
12 mm
Output Circuit Current - Maximum
250 mA
Operating Temperature - Minimum
-13 Degrees F
Style
Cylindrical, Inductive
Body Finish
Bronze Coated
Sensing Face Shielding
Unshielded
Output Circuit Contact Form
NO
Body Material
Brass/PA/PBT
Output Circuit Number of Wires
2
Switching Frequency
25 Hz (AC), 90 Hz (DC)
Output Circuit Type
AC/DC-Type
DC Voltage Rating
20-250V DC
Operating Temperature - Maximum
158 Degrees F
Number of Pins
3
Electrical Installation Type
Direct Connector
Output Circuit Voltage - Maximum
6 V DC
Includes Indicator Lights
Indicator Lights Included

Description

Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 20 to 250V AC/DC, Unshielded, Proximity Sensor Operating Frequency 25 Hz AC/90 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 3 Pin 1/2-20 UNF Male Connector, Output Mode NO, IP Rating IP67, Case Material Brass White Bronze Coated, Length 72 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 250/100mA
